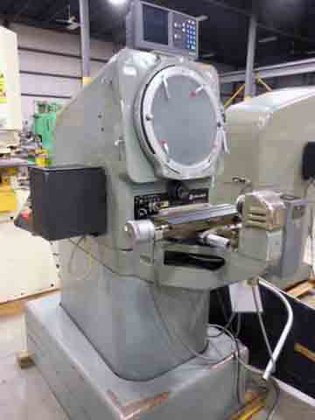

USED JONES & LAMSON MODEL TC-14 OPTICAL COMPARATOR, 14"

Interested in Purchasing?


JONES & LAMSON MODEL TC-14
Listing ID:
3295230
Price:
Contact Seller
Manufacturer:
Jones & Lamson
Condition:
used
Location:
Bethlehem, PA
Seller:
Contact Seller
Learn More:
Click to Contact Seller Lead submitted successfully

Specifications:

Model:
TC-14
Focus:
1.375″
Division:
Miscellaneous Equipment
Chart rail:
8″ X 10″, 10″ X 12″, 11″ X 14″
Lens mount:
6 POSITION LENS SELECTOR OR
Location 1:
Bethlehem, PA
Stock code:
JV-19066TK
Work table:
5″ X 16″ HARD CHROMIUM PLATED
Helix rotation:
10 DEGREE LEFT & RIGHT
Weight, approx:
650 LBS
Screen diameter:
14"
Screen diameter 2:
14″ W/ RIGHT ANGLE & 60 DEGREE LINES
Vertical table travel:
2″ MANUAL TRAVEL
Electrical requirements:
118 VOLTS, 1 PH, 60 HZ, 15 AMP
Lens centerline to table:
1-1/4″ MIN / 3-1/4″ MAX
Longitudinal table travel:
4″ MANUAL TRAVEL
Angular measuring capacity:
360 DEG. CHART ROTATION
Category:
Testing, Inspection & Measuring
Subcategory:
Comparators

Description:

SPECIFICATIONS
SCREEN DIAMETER: 14″ W/ RIGHT ANGLE & 60 DEGREE LINES
WORK TABLE: 5″ X 16″ HARD CHROMIUM PLATED
MEASURING CAPACITY
LONGITUDINAL TABLE TRAVEL: 4″ MANUAL TRAVEL
W/ ACU-RITE GLASS SCALE (0.001mm/0.0001″ RESOLUTION)
VERTICAL TABLE TRAVEL: 2″ MANUAL TRAVEL
W/ ACU-RITE GLASS SCALE (0.001mm/0.0001″ RESOLUTION)
ANGULAR MEASURING CAPACITY: 360 DEG. CHART ROTATION
1 MINUTE VERNIER
FOCUS: 1.375″
HELIX ROTATION: 10 DEGREE LEFT & RIGHT
(NONE ON PLAIN TABLE)
LENS MOUNT: 6 POSITION LENS SELECTOR OR
SINGLE LENS MOUNT
CHART RAIL: 8″ X 10″, 10″ X 12″, 11″ X 14″
LENS CENTERLINE TO TABLE: 1-1/4″ MIN / 3-1/4″ MAX
GENERAL
WEIGHT, APPROX: 650 LBS
ELECTRICAL REQUIREMENTS: 118 VOLTS, 1 PH, 60 HZ, 15 AMP
EQUIPPED WITH
20X & 50X MAGNIFICATION LENSES (ERECT IMAGE & FIXED FOCAL PLANE)
ACU-RITE 2-AXIS DIGITAL READOUT SYSTEM
