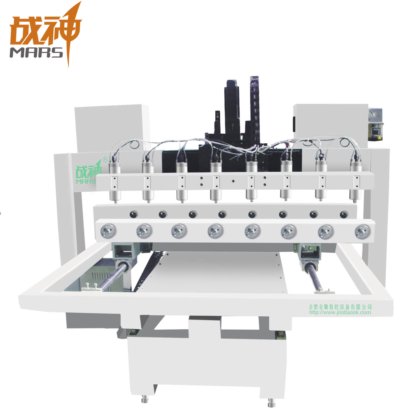

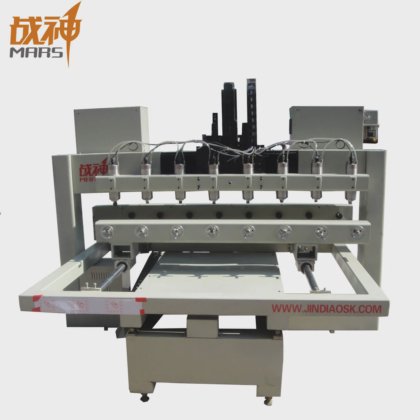

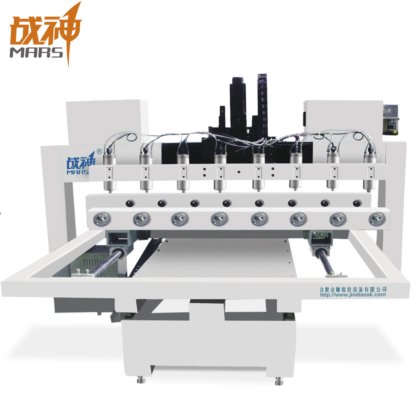

4 Axis Rotary CNC Router Machine/CNC Engraving Machine/CNC Routing Machine in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- CE
- Cnc or not
- CNC
- Voltage
- 380V
- Transport package
- Plywood Case Package
- Specification
- 2500*1200mm
- Hs code
- 84659900
- Production capacity
- 300 Sets/Month
- Working stoke
- Ø250X1200mm
- Feeding height
- 160mm-250mm
- Table structure
- T-slot
- Body structure
- Thick steel tube welded, w/ tempering
- Spindle speed
- 0 ~ 24000 rpm/min
- Control system
- RichAuto-A11 DSP
- Drive system
- SG servo motor
- Lubrication system
- Automatic
- Transmission
- XY axis rack and pinion, Z axis ball screw
- Guide rail
- Taiwan Hiwin linear rail
- Max travelling speed
- 20m/min
- Max processing speed
- 10m/min
- Dictate format
- G code/ HPGL
- Engraving tool
- ¢3.175/ 4/ 6/ 12.7mm
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Working voltage
- AC380/ 3PH/ 50HZ
- Net weight
- 2500KG
- Machine size
- 2700*2000*2100mm
- Category
- Engraving Machines in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103570762
Description
4 Axis Rotary CNC Router Machine/CNC Engraving Machine/CNC Routing Machine
Keywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Parameters:
Spindle Power, 6*2.2KW frequency water-cooling spindle, (Air-cooling motor, or Italy imported HSD motor is optional)
Performance Features:
1. Selection of imported ball screw, high precision dividing head, big clamping diameter, can be adapted to different sizes of cylindrical material.
2. National patent box-type column.
3. High-precision drive systems.
4. Using a unique intelligent prediction algorithm, gives full play to drive potential to achieve high speed processing, linear and curve synchronous,
the curve is more smooth.
5. With break-point and power-off memory function, ensure continuous processing after an accident of tool breaking or power-off.;
6.
