High Precision Three Axis Ball Screw CNC Machining Center CNC Router Machine High Precision CNC Machine /CNC Boring Machine Customizable in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO
- Cnc or not
- CNC
- Voltage
- 380V
- Size of equipment
- 3700*2300*2400mm
- Net. weight
- 3000kgs
- Transport package
- Plwood Boxes
- Specification
- 1300*2500mm
- Hs code
- 84659100
- Production capacity
- 3000 Sets Per Year
- Control system
- Syntec/Delta system
- Drive system
- Yaskawa/Delta servo motor
- Spindle
- 9KW ATC spindle; 0 ~ 24000 rpm/min
- Tool magazine
- 16pcs linear type tools magazine
- Max.travelling speed
- 80*80*30m/min (X/Y/Z)
- Vacuun pump power
- 7.5kw Water cycle
- Lubrication system
- Automatic
- Running commands
- G code, F/S command compatible
- Xy axis servo motor
- Syntec AC servo
- Z axis servo motor
- Syntec servo with holding brake
- Adsorption method
- Cavity vacuum adsorption
- Positioning device
- cylinder positioning
- Tooling setting
- Automatic tooling setting
- Re-positioning accuracy
- ±0.05MM
- Ball screw
- Japan imported NSK high precision ball screw
- Reducer
- Planetary
- Frequency converter
- MARS/Zoncn/ Fuling optional
- Cable
- Mars drag chain special use cable
- Electric
- Delixi
- Processing
- Cutting+Milling+Drilling+Slotting
- Category
- Machining Centers in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103574158
Description

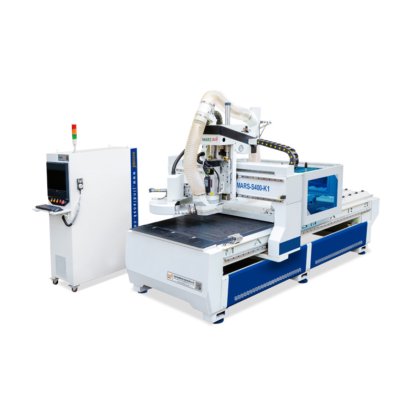

S400-K1 High Precision 3 Axis Ball Screw CNC Machining Center
1,Product Parameters
Transmission Mode, Three Axes all imported high precision screw drive
Pushing device, Automatic pushing and dust collection,Dockable unloading platform
Guide Rail, Taiwan imported large size square linear 45 guide rail
2,Application scope
Material, Artificial stone, wood, bamboo, marble, organic board, color plates and other materials
Application, Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings

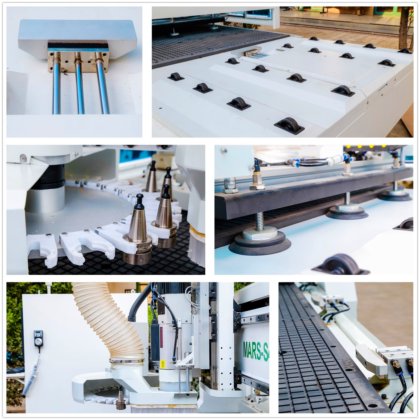

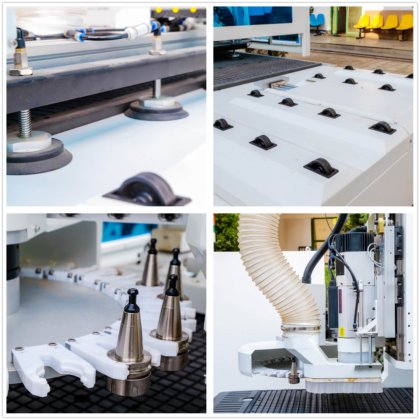

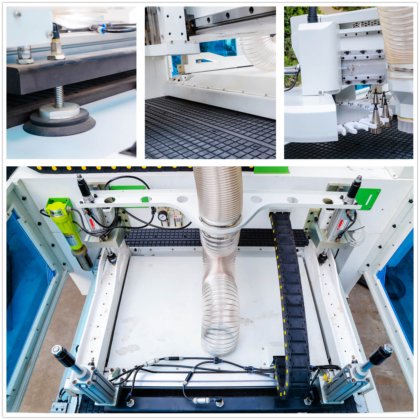

3,Main parts
4,Performance feature
1, Mainly used for cutting,drilling,slotting and one-time processing for the special shape plate in customized panel furniture enterprises,it can also be used for home decoration or cabinet door multi process modeling processing
