1967 KIMWOOD 6-HEAD ABRASIVE PLANER
Location:
United States
Price:
$265,000 USD
Manufacturer:
KIMWOOD
Model:
6-HEAD
Elect./Voltage:
460 V, 60 Cy, 3 Ph.

Specifications

Condition:
used
Year:
1967
Recnum:
AP-010324
Comments:
A Board Plant industrial sander with machine reconditioning!
Machtype:
ABRASIVE PLANER (1-HD. TOP)
Condition info:
(8-9) Reconditioned [8]
Current status:
Active
Elect./voltage:
460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
1.5e+006

Description

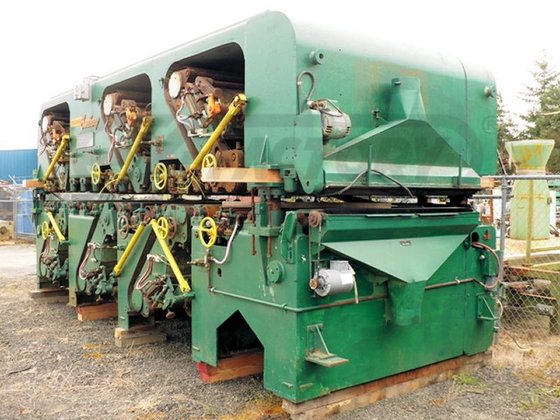

KIMWOOD 6-head top and bottom 5 Ft. wide sander with 62-inch maximum panel width capacity.

-- 1st top and bottom heads opposed contact drums with 13.5" diameter steel drums driven by 150 HP direct drives.

-- 2nd top and bottom heads are offset opposed contact drums with 13.5" diameter steel drums driven by 125 HP direct drives.

-- 3rd top and bottom heads are offset opposed combination contact roll and smoothing platen heads driven by 100 HP direct drives and "billy roll" backup.

-- Final cleaning brushes top and bottom with 1 HP belt drive.

-- Panel flow is left to right, with constant pass line height of 50 inches. Exhaust: 60,000 CFM at 8" static pressure. Weight with motors: 78,000 lbs. Length: 288 inches.

-- Note: Reconditioning has not yet been undertaken. Allow 90 days for reconditioning service.

--
