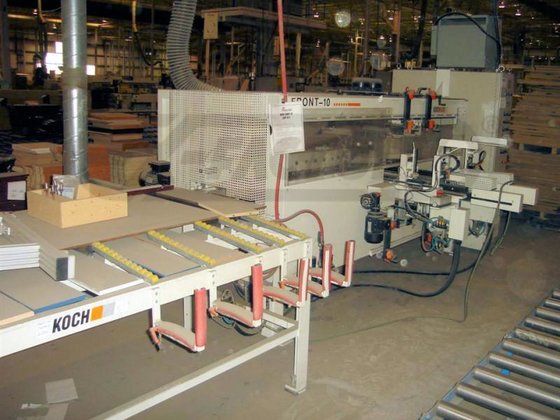

2004 KOCH FRONT 10 BORING
Location:
Canada
Price:
$78,500 USD
Manufacturer:
Koch boring mills
Model:
FRONT 10

Specifications

Condition:
used
Year:
2004
Recnum:
BF-010534
Comments:
Seller States "Less than (100) TOTAL operating Hours; ..."Top-of-the-Line" KOCH in this condition is hard to find!
Machtype:
BORING MACH. (FEED THRU W/DRAWER FRONT GROOVING)
Condition info:
(7-9) Like New [9]
Current status:
Active
Elect./voltage:
400 V, 50 Hz, 3 Ph.
Appr. repl. cost:
157000

Description

Drawer Front Machine with; Vertical through drilling units from both the TOP & BOTTOM; can be programmed to bore through the drawer front for attachment of handles & knobs or through the back for dowels & other connecting hardware.

-- Includes: New saw blade "Grooving Station" for the bottom panel; produces approx. (18) parts/Minute.

-- Working dimensions of 254 - 900 mm (10" - 35.4") long x 120 - 300 mm (4.7" - 11.8") wide; 12 - 26 mm (1/2" - 1") panel thickness.

-- Equipped with: (1) 2 kW (2.7 HP) BOTTOM Vertical boring station, (1) 10-spindle "Quick Change" chuck boring head.

-- (1) 2 kW (2.7 HP) TOP Vertical boring station, (1) 10-spindle "Quick Change" chuck boring head.

-- (1) BOTTOM "Grooving" station with: (1) 1.5 kW (2 HP) Saw blade, 90 mm (3-1/2") dia.; 15,000 RPM.

-- Equipped with: Incremental dimension & depth control by PLC; air jet nozzles for blow-out of wood chips; individual on/off control.

-- SIEMENS Microprocessor w/free programmable electronic control: Automatic working cycles, automatic motor start, trouble shooting indicator, and monitoring of program functions.

-- Complete with: Pneumatic double cylinder holddown clamps; side aligning devices; motorized adjustment of panel support together with feed chain & stops.

-- (1) 100 mm (3.9") Dia. chip extraction port at the boring station & (1) 140 mm (5-1/2") dia. chip extraction port at the grooving station.
