1998 BIESSE EXCEL 4016 TC

1998 BIESSE EXCEL 4016 TC CNC ROUTER (TWIN TABLE & ATC) [RC-011857] in United States

Location:
United States
Price:
$15,210 USD
Manufacturer:
Biesse
Model:
EXCEL 4016 TC

Specifications

Condition:
used
Year:
1998
Recnum:
RC-011857
Comments:
A lot of machine & equipment value for the money was dismantled and packed by STILES machinery.
Machtype:
CNC ROUTER (TWIN TABLE & ATC)
Condition info:
(3-6) Good condition [4]
Current status:
Active
Elect./voltage:
380-460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
275000

Description

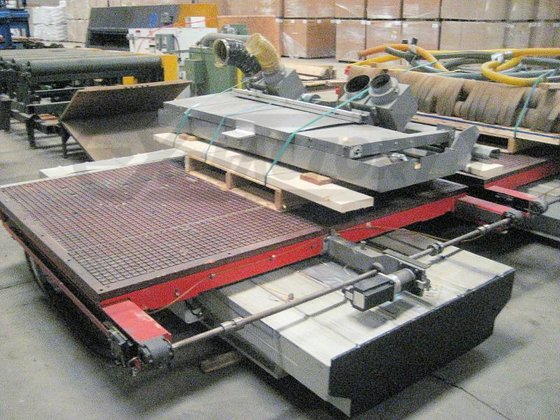

Twin 87" x 63" tables with a center supported bridge operate independently only for loading/unloading on one while the other is in process. Each table has a phenolic grid vacuum plenum with multiple vacuum points for use with spoil boards or pods.

-- Equipped with: (2) 13.6 HP "ISO 30" type ATC Spindles with 12-station catepillar style carousels capable of background tool changing, variable spindle speed from 1,000 to 18,000 RPM, and ceramic bearings for increased life & performance; all routing spindles will accept aggregates.

-- Additional Spindles: (2) 19-Spindle boring units driven by 2.3 HP - 4,000 RPM motors; (13) are vertically independent & operate in T-formation with (8) along the X-axis & (5) along the Y-axis; (6) horizontal spindles, (2 x 2) working in the X-axis direction, (2 x 1) working in the Y-axis direction, 60 mm max. boring depth.

-- OSAI PC Based CNC control with: Color monitor, large hard drive, CD Rom drive, 3-1/2" floppy drive, inch/metric conversion, 3-axis linear & circular interpolation, tool compensation, work coordinate offsets, and RS-232 & network card communications.

-- All axes are driven by closed loop AC Servo motors and ride on precision THK ways with linear roller bearings, precision ball screws are utilized on the Y-/W- & Z-axis, and a helical rack & pinion on the X-axis (bridge); an automatic lubrication system services the way & ball screw bearings.

-- Complete with: Assorted tooling, and original documentation. NOTE: there are no vacuum pumps with the machine.
