1999 CMS NC-PF 111-6T+6M CNC

1999 CMS NC-PF 111-6T+6M CNC ROUTER (MULTIPLE SPINDLE) [RC-011581] in United States

Location:
United States
Price:
$99,000 USD
Manufacturer:
CMS
Model:
NC-PF 111-6T+6M

Specifications

Condition:
used
Year:
1999
Recnum:
RC-011581
Comments:
This machine was moved professionally by CMS North America!
Machtype:
CNC ROUTER (MULTIPLE SPINDLE)
Condition info:
(7-9) Excellent condition [7]
Current status:
Active
Elect./voltage:
240/480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
400000

Description

(1) 120" (3,050 mm) x 61" (1,560 mm) Moving "Lignostone" table surface, table is machined with a 30 mm x 30 mm grid with threaded bushings in a 150 mm grid.

-- Extra Heavy Duty fixed gantry bridge, X-axis travel is 141.7" (3,600 mm), Y-axis is 62.9" (1,600 mm), and Z-axis is 10" (250 mm).

-- Equipped with: (6) 10 HP (7.4 kW) Electro spindle routers with RH/LH programmable rotation, spindle speed of 1,000 - 18,000 RPM, with (6) "piggyback" 4 HP (2.9 kW) spindles powered by (4) 11 KVA frequency inverters.

-- Closed loop AC Servo drive system with precision ground ball screws for positioning, very fast 2,125 IPM (54,000 mm) positioning feed rate on X-axis; 1,771 IPM (45,000 mm) on Y-axis, all axes ride on extra large REXROTH (star) precision contour linear guideways.

-- "OSAI 10/310" CNC control system with: 420 MB Hard drive, 9" high resolution CRT, RS-232 port built into free-standing control cabinet.

-- Featuring: (3) Axes simultaneous control, inch/metric operation, and feed rate & spindle speed override (monitor & controls built into movable pedestal).

-- (1) 40 HP TRAVAINI "TRO500S-1A" Vacuum Pump.

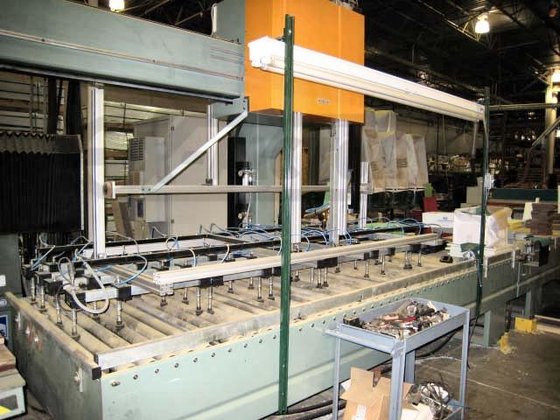

-- Load & unload system is equipped with: (2) Motorized roller conveyors, (1) motorized belt conveyor. (1) Load & unload device with (2) carriages with vacuum pods; axis strokes are CNC controlled; (1) finished parts unload belt conveyor.

-- Min. size of parts 6" (150 mm) x 8" (200 mm); max. size of parts 12" (300 mm) x 30" (760 mm) when manufacturing (6) parts at a time.
