2009 FINISHING SYSTEM 26'LONG X

2009 FINISHING SYSTEM 26'LONG X 6' WIDE X 10' HIGH GAS FIRED PREHEATING OVEN [FO-010301] in United States

Location:
United States
Manufacturer:
FINISHING SYSTEM
Model:
26'LONG X 6' WIDE X 10' HIGH

Specifications

Condition:
used
Year:
2009
Recnum:
FO-010301
Comments:
A lot of machine & equipment value for the money!
Machtype:
GAS FIRED PREHEATING OVEN
Condition info:
(8-9) Reconditioned [9]
Current status:
Active
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
28000

Description

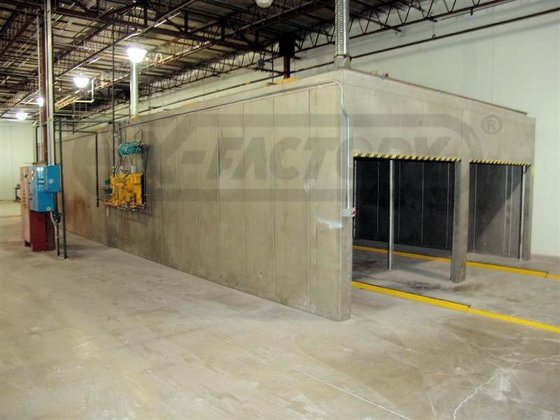

Oven Dimensions (overall): 6' Wide x 26' long x 10' high

-- Utilities - Electrical: 460 Volt, 3-Phase, 60 Hz

-- When GAS is needed the Oven will have a 750,000 BTU Burner complete with Gas Train & temperature controllers with a max. temperature of 240°.

-- Oven enclosure Panels (USED) consist of: 20-Gauge, aluminized 4" thick x 12' long x 27" wide Heavy interlocking steel tongue & groove panels.

-- (3) Overhead 48" turbulator type fans, 3 HP and rated at 20,000 CFM each (USED).

-- (1) 12" dia. 1/3 HP - 1,800 CFM exhaust fan with open drip-proof motor and control.

-- Control Panel will be pre-wired and shop tested; free-standing NEMA-12 control panel will be furnished with circuits pre-wired to terminal strips; includes (4) motor starters, temperature controller, (1) door-mounted disconnect with interlock hardware to prevent opening the door without disruption the poweer supply.

-- (1) Control voltage transformer will be furnished to reduce the voltage to 110 Volts for the oven control circuits.

-- Modulating "heat & temperature": Indicating controller for temperature, operates a control valve.

-- ALL OVENS WILL BE DESIGNED AND EQUIPPED TO CUSTOMER'S NEEDS FROM NEW AND USED PARTS AS NEEDED. THESE OVENS WILL MAKE GREAT BUYS AND READY FOR GOOD SERVICE!

--warranty: 1 year parts only.
