2008 FINISHING SYSTEM OVENS SIZED

2008 FINISHING SYSTEM OVENS SIZED TO YOUR NEEDS PER YOUR DESIN GAS OR STEAM FIRED [FO-010201] in United States

Location:
United States
Manufacturer:
FINISHING SYSTEM
Model:
OVENS SIZED TO YOUR NEEDS PER YOUR DESIN

Specifications

Condition:
used
Year:
2008
Recnum:
FO-010201
Comments:
OVENS MADE TO YOUR SIZE SPECFICATIONS FROM NEW AND USED PARTS FOR GREAT VALUE!
Machtype:
GAS OR STEAM FIRED
Condition info:
(7-9) Excellent condition [8]
Current status:
Active
Elect./voltage:
460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
58000

Description

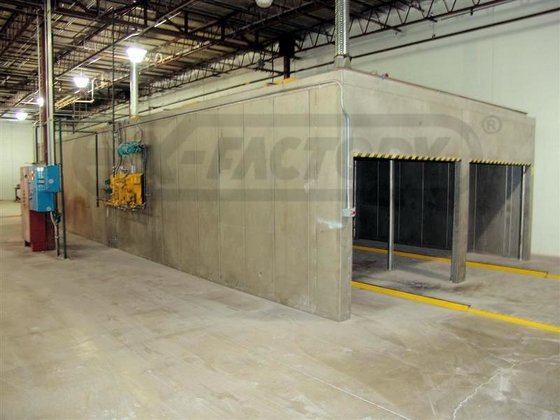

Oven Dimensions (overall): 12' Wide x 26' long x 12' high with two (2) doors 4'wide x 7' high at both customer's specifications.)

-- Utilities - Electrical: 460 Volt, 3-Phase, 60 Hz (also available in 230 Volt); when Heating Source is GAS or STEAM (Steam being available from plant source).

-- When GAS is needed the Oven will have a 500,000 or 750,000 BTU Burner (NEW and AS NEEDED) complete with Gas Train & temperature controllers with a max. temperature of 160°.

-- Oven enclosure Panels (USED) consist of: 20-Gauge, aluminized 4" thick x 12' long x 27" wide Heavy interlocking steel tongue & groove panels. Typical set up features (2) 4' wide doors - to be positioned per customer's request.

-- (3) Overhead 48" turbulator type fans, 3 HP and rated at 20,000 CFM each (USED).

-- (1) 12" dia. 1/3 HP - 1,000 CFM exhaust fan with open drip-proof motor and control.

-- Control Panel will be pre-wired and shop tested; free-standing NEMA-12 control panel will be furnished with circuits pre-wired to terminal strips; includes motor starters, temperature controller, (1) door-mounted disconnect with interlock hardware to prevent opening the door without disruption the poweer supply.

-- (1) Control voltage transformer will be furnished to reduce the voltage to 110 Volts for the oven control circuits.

-- Modulating "heat & temperature": Indicating controller for temperature, operates a control valve.

-- ALL OVENS WILL BE DESIGNED AND EQUIPPED TO CUSTOMER'S NEEDS FROM NEW AND USED PARTS AS NEEDED. THESE OVENS WILL MAKE GREAT BUYS AND READY FOR GOOD SERVICE!
