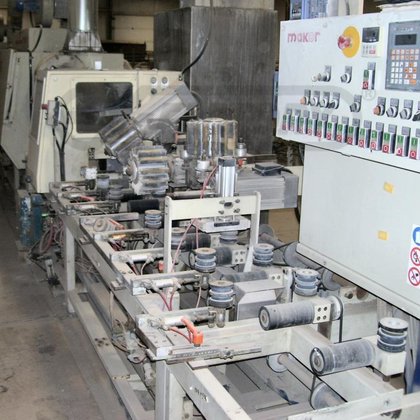

1999 MAKOR MOULDING FINISH LINE UV FINISH SYSTEM (SANDER, SPRAY & OVEN) [FS-010476] in United States
- United States
- $68,000 (USD)
- MOULDING FINISH LINE
Complete base & top coat edge Finishing System in batch quantities positioned on their edge, originally finished beveled edge solid wood shutter louvers. 12" Min. & 108" max. length, batch width between 2" -12" with a 2' space between each batch; 12' to 99 FPM line speed.
-- Includes: (2) "IFB" UV Spraying Machines; (2) FUSION "FTL/2+2" UV Curing Ovens.
-- Sprayers: (2) "IFB" UV Spray machines designed for the application of UV products (clear and base & top coat) on the moulding, profiles, shutters, architectural mouldings, etc.
-- Includes: (2) Spray guns (1 with photocell control), pump, pre-heater, overspray vat with recovery system and small cabinet enclosure with viewing windows on (3) sides.
-- Ovens: "FTL/2+2" UV Curing Oven; feed through system for immediate curing of linear profiled material, designed for curing of UV coating.
-- Equipped with FUSION UV SYSTEM: (4) "F300" Overhead UV lamps (300 W/in.), mounted overhead on a tiltable swivel for max. curing efficiency, (3) different height settings; steel roller conveyor.
-- Irradiators are fully enclosed and visually shielded, lamp is mounted on vertically adjustable rack to allow precise focal point adjustments where necessary, and is easily removed for replacement or service; lamp cooling fan, exhaust fan for heat & fumes removal through filtration plenum.
-- System complete with: Infeed mounted control panel with conveyor speed readout & lamp power setting switches, and a fully enclosed, easily accessible power unit. - Overall length is approx. 8'.
-- Line Setup: Infeed, raw wood sanding, UV spray base coat, UV cure, base coat sanding , UV spray top coat, UV cure. - 2-Coat single pass system.
