1998 KOCH COMPACT-NC DOUBLE SIDED

1998 KOCH COMPACT-NC DOUBLE SIDED TRIM, BORING & DOWEL INSERTER [GD-010405] in United States

Location:
United States
Price:
$27,900 USD
Manufacturer:
Koch
Model:
COMPACT-NC

Specifications

Condition:
used
Year:
1998
Recnum:
GD-010405
Comments:
Computer screen setup and adjustment for 9-axis setting & operation; can handle just about any shape or angle!
Machtype:
DOUBLE SIDED TRIM, BORING & DOWEL INSERTER
Condition info:
(8-9) Reconditioned [8]
Current status:
Active
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
245000

Description

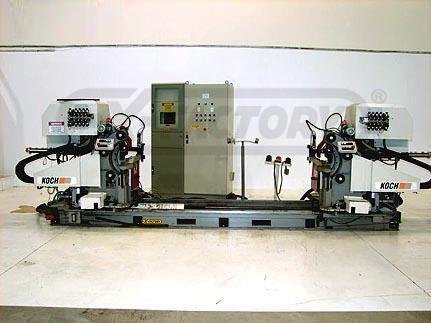

KOCH - Compact-NC, ...Trim, Bore, Dowel Inserter - Double Sided.Double-sided machine - left side fixed, right side with motorized travel.

-- Working length from 6" - 98", width 3/4" - 7-3/4" and 1/2" - 3-1/8" material thickness; hydraulic "push-into-position" material feed system.

-- Trimming & horizontal boring integrated into (1) station; the dowel driving unit is located behind the trim & boring station, both units are mounted on (1) support; workstations swivel +30° to -90° and tilt from 45° up to 15° down.

-- After finishing the trimming & boring process, this support moves in direction of the operator and the dowel driving unit moves into previous position of the boring unit.Each side equipped with:

-- Trim saw with 400 mm dia. blade, 3 HP motor with electric motor brake, upcut stroke through clamped workpiece.

-- Horizontal boring station with boring unit (round type), rotating drill head with (3) boring spindles to receive 7/16" UNC 14 shanks on 1-1/2" x 1-1/2" centers.

-- Dowel Hopper is missing and doweling station will require reconditioning.

-- Glue valves controlled individually at control cabinet; central adjustment for the amount of glue by means of digital timer.Operator & Machine Control:

-- SPS Numerical control for positioning and function control with PC operating system managing (9) axes, including "swivel, tilt, depth & length".

-- Includes: 15" Color monitor, 3-1/2" floppy disk drive, serial & parallel interface, and keypad along with remote hand control unit.
