KOCH SBD CUT-OFF BORE &

KOCH SBD CUT-OFF BORE & DOWEL INSERTER [GD-010630] in Germany

Location:
Germany
Price:
$35,208
Manufacturer:
Koch
Model:
SBD

Specifications

Condition:
used
Recnum:
GD-010630
Comments:
Seller States "Reconditioned with repairs, new paint & electricals"!
Machtype:
CUT-OFF BORE & DOWEL INSERTER
Condition info:
(8-9) Reconditioned [8]
Current status:
Under Contract
Elect./voltage:
380 V, 50 Cy, 3 Ph.
Appr. repl. cost:
268500

Description

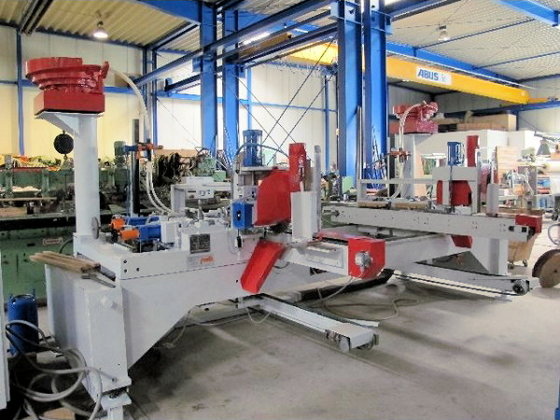

KOCH SBD-A CUT-OFF BORE & DOWEL INSERTER:

-- Specifications:Working dimensions: length = 280 mm - 1,950 mm (11.0" - 76.7"), thickness 10 mm - 32 mm (.39" - 1.26"), width 50 mm - 320 mm (1.9" - 12.6").

-- Equipped with: Hopper in-feed; (2) pneumatically operated overhead Cut-off/trim saws with 3.5 HP (2.6 kW) motor, 300 mm (12") dia. blade cap.(2) Horizontal 3-spindle boring heads with spindles on fixed 32 mm centers;(2) 3-head dowel inserting units capable of inserting 8, 10 & 12 mm dia. x 30 mm long dowels.

-- Complete with: SIKO digitals for setup adjustment; operating sequence for parts advance; cut-off saw activation; drill group advance; table advance; dowel inserting;High-pressure KOCH glue control system; (2) vibrating dowel bowls; return conveyor for 1-man operation.

-- Actual Model is KOCH SBD-A
