2003 MAHROS 200/35 VACUUM PANEL
Location:
Canada
Price:
$8,830 USD
Manufacturer:
MAHROS
Model:
200/35

Specifications

Condition:
used
Year:
2003
Recnum:
MA-280265
Comments:
Motivated seller upgraded to another machine & says "Make me a reasonable offer!"
Machtype:
VACUUM PANEL HANDLER
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
460V, 60 CY, 3 Ph.
Appr. repl. cost:
30000

Description

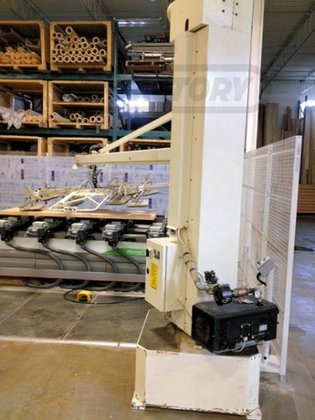

Floor Mounted Lift with Jib Crane and fixed base for moving panels of wood or similar material; load capacity 165" x 87" (4,200 x 2,200 mm); 440 Lbs (200 kG), 3 HP (2.2 kW) motor.

-- Includes: (4) 11" x 11" Adjustable vaccum pads per 47" for gripping of small or porous panels; min. panel length/width 39" x 24" (990 x 610 mm); max lifting height 64" (1,626 mm).

-- Floor mounted 36" x 36" (914 x 914 mm) base w/lift motor; 10' (3 M) swiveling column; 360° range of motion w/swiveling brake and range of motion stop plates.

-- Complete with: RIETSCHLE "VLT-40 (01)" Vacuum Pump with 1.75" dia. hose and pressure gauge with flashing light in case of pressure drop.
