2007 SCHELLING FH4-430 FRONT LOAD,

2007 SCHELLING FH4-430 FRONT LOAD, AUTOMATIC PANEL SAW [PH-011986] in Italy

Location:
Italy
Manufacturer:
Schelling
Model:
FH4-430

Specifications

Condition:
used
Year:
2007
Recnum:
PH-011986
Comments:
Top of the line model ready for delivery!
Machtype:
FRONT LOAD, AUTOMATIC PANEL SAW
Condition info:
(7-9) Excellent condition [8]
Current status:
Active
Elect./voltage:
400 V, 50 Cy, 3 Ph.
Appr. repl. cost:
146000

Description

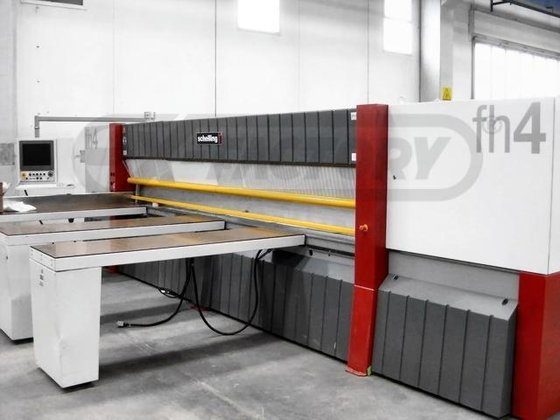

SCHELLING FH4-430 FRONT LOAD, AUTOMATIC PANEL SAW

-- Specifications:169" (4,300 mm) Rip Cutting cap. & 161.4" (4,100 mm) pullback; 3.8" (98 mm) saw blade projection; 20 HP (15 KW) - 3.800 RPM main motor, 3 HP (2.2 KW) - 5,500 RPM scoring motor.

-- Saw Carriage:Variable saw carriage travel speed 0 - 394 FPM (0 - 120 MPM), constant return of 394 FPM (120 MPM).

-- Pusher Fence:Programmable overhead program fence, rack & pinion driven on both sides; forward speed 0 - 262 FPM (0 - 80 MPM), forward speed is currently set at 0 - 82 FPM (0 - 25 MPM) per CE standards, return speed 262 FPM (80 MPM); (9) gripper clamps (open up to 3.5" / 90 mm).

-- Operator & Machine Control:Schelling "MCS Evolution 2.0" + Windows "XP" operating system; TFT 17" screen. Work piece side-aligner with 86" (2,200 mm) stroke, 98" (2,489 mm) long precision crosscut fence w/mechanical flip stops, adjusting on scale w/magnifying lens.

-- Complete with:(3) Front mounted air flotation tables; perimeter safety fence, built to CE safety standards.

-- Actual Model is Schelling FH4 - 430Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
