2001 BURKLE ODW 2255/120 FEED

2001 BURKLE ODW 2255/120 FEED THROUGH PRESS [PF-010348] in Canada

Location:
Canada
Price:
$119,000 USD
Manufacturer:
Bürkle
Model:
ODW 2255/120

Specifications

Condition:
used
Year:
2001
Recnum:
PF-010348
Comments:
A 7' x 18' Press with In-And Out feed and 160 PSI Specific pressure - a rare find!
Machtype:
FEED THROUGH PRESS
Condition info:
(3-6) Good condition [6]
Current status:
Active
Elect./voltage:
460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
600000

Description

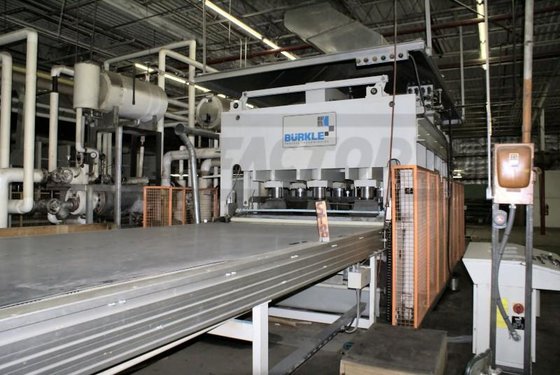

BURKLE ODW 2255/120 Feed through Press Line Steam Heated with:

-- Platen dimensions of 86-1/2" x 216-1/2" drilled steel.

-- Infeed Conveyors: (1) 86-1/2" x 78" and (1) 86-1/2" x 228". Powered belt feeds into Press.

-- Single Daylight Press, 150 mm (5.9") opening, end loading on 86-1/2" side; total pressure of 1,500 tons, specific pressure of 160 PSI.

-- (18) 7" Dia. Down Stroke hydraulic cylinders. Press platens are 100 mm (3.93") thick solid steel drilled for oil heating or steam. Was connected to a central boiler for steam heating (not included).

-- Mylar Feed Through belt carries your panel into/out of the Press at an approx. feed speed of 33 FPM.

-- Outfeed Conveyor with (15) belts & 2" wide conveyor size of 92" x 252".

-- Complete With: All controls & special wire mesh reenforced hoses for heating connection; Line is currently dismantled and ready for shipment!

-- Note: Boiler not included
