1991 BURKLE ODWMP 1734/12 MEMBRANE
Location:
United States
Price:
$168,000 USD
Manufacturer:
BURKLE
Model:
ODWMP 1734/12

Specifications

Condition:
used
Year:
1991
Recnum:
PM-010181
Comments:
A lot of machine & equipment value for the money!
Machtype:
MEMBRANE & HOT PRESS
Condition info:
(3-6) Good condition [6]
Current status:
Active
Elect./voltage:
460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
550000

Description

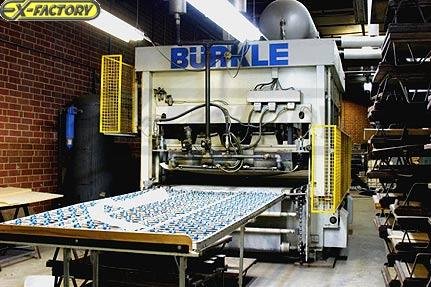

BURKLE ODWMP 1734/12 MEMBRANE PRESSComplete Press Line for the lamination of 3D Veneer or flat pressing and flat pressing of laminates.

-- Complete Press Line includes:

-- (1) Loading belt with Polyurethane coating, 1,600 mm x 4,000 mm (63" x 157-1/2") belt with markings on the conveyor for cylinder rows and the maximum useful width.

-- (1) BURKLE Single daylight Press, model "ODWMP 1734/12"; 1,700 mm x 3,400 mm (67" x 134") heating platens, 1,550 mm x 3,100 mm (61" x 122") useful working area.

-- Max. operating temperature on the surface of the heating platens is 150° C (302° F); loading on the 1,700 mm (67") side.

-- 5,800 kN (638 tons) Total pressure; 121 N/cm² (172 PSI) max. specific hydraulic pressure flat pressing; 100 N/cm² (142 PSI) max. specific hydraulic pressure for membrane pressing; 6 bar (85 PSI) max. specific pneumatic pressure.

-- (10) 160 mm (6-1/4") Dia. downstroke pistons; (2) transverse rows of cylinders to be isolated by a push button in the control desk; (2) thermal oil heated platens.

-- (1) Outfeed roller track for the unloading of panels from the Press.

-- Complete with: Vacuum pump; (1) membrane clamping device; (1) membrane cloth; (1) Control Desk for operation of the Press; (1) Switch cabinet with PLC.

-- Approx. weight of 103,400 Lbs (47,000 kg).

-- This Press will do Veneer, but not PVC.
