1990 FLETCHER MACHINERY FM-45S PROFILE
Location:
United States
Price:
$14,990 USD
Manufacturer:
FLETCHER MACHINERY
Model:
FM-45S
Elect./Voltage:
230/460 V, 60 Cy, 3 Ph.

Specifications

Condition:
used
Year:
1990
Recnum:
SP-010369
Comments:
That's a Sander that's build to last "by the best in the industry"!
Machtype:
PROFILE SANDER (FEED-THRU - MOULDING)
Condition info:
(6-8) Very good condition [6]
Current status:
Active
Elect./voltage:
230/460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
85000

Description

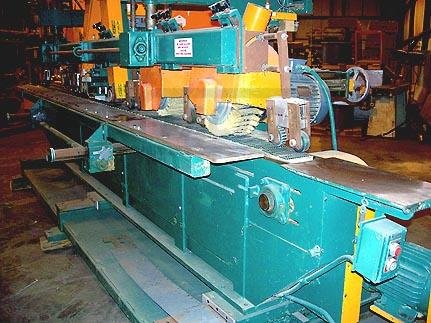

4-Station moulding sander with (2) lineal belt profile sanding heads and (2) brush heads, 5" wide feed track.

-- Infeed with hand wheel adjustable fence on left side, single end thickness opening (max. 4" thick) via hand wheel, overhead rubber roller type holddown.

-- 1st Station - 3" Wide triangular profile sanding belt; 3 HP motor; Pneumatic belt tensioning; Vertical/Horizontal adjustment with electronic readout; 90° Rotation.

-- 2nd Station - 3" Wide triangular profile sanding belt; 3 HP motor; Pneumatic belt tensioning; Vertical/Horizontal adjustment with electronic readout; 90° Rotation.

-- 3rd Station - 5" Wide brush sandinig head, Vertical/Horizontal adjustment with electronic readout; 90° Rotation.

-- 4th Station - 5" Wide brush sandinig head, Vertical/Horizontal adjustment with electronic readout; 90° Rotation.

-- Feed Chain: 5" Wide high tensile steel links joined by hardened steel pins in PTFE impregnated bushings; DELRIM plastic link pads attach to each link riding on steel hex & flat ways; serrated urethane pads attach to each link pad; feed chain powered by direct drive motor/gearbox with variable frequency speed control.

-- Includes: Control panel at infeed with individual illuminated start/stop buttons; master lockout system with removable key to insure machine cannot be started during setups; master stop button on control panel and at outfeed end to completely stop machine.
