1993 FLETCHER MACHINERY FM-55S PROFILE
Location:
United States
Price:
$14,220 USD
Manufacturer:
FLETCHER MACHINERY
Model:
FM-55S
Elect./Voltage:
230/460 V, 60 Cy, 3 Ph

Specifications

Condition:
used
Year:
1993
Recnum:
SP-010451
Comments:
A true workhorse!
Machtype:
PROFILE SANDER (FEED-THRU - MOULDING)
Condition info:
(3-6) Good condition [6]
Current status:
Active
Elect./voltage:
230/460 V, 60 Cy, 3 Ph
Appr. repl. cost:
85000

Description

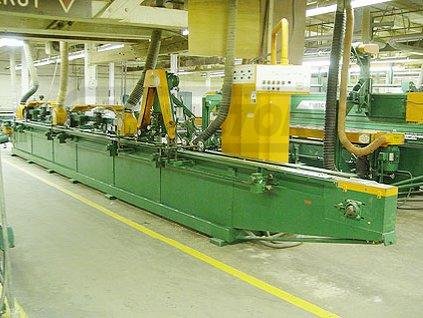

4-Station moulding sander with (3) lineal belt profile sanding heads and (1) brush head, 5" wide feed track.

-- Infeed: 5" feed chain with rubber inserts.

-- 1st Station - 3" wide triangular profile sanding belt; Pneumatic belt tensioning; Vertical/Horizontal adjustment; 15° plus/minus rotation.

-- 2nd Station - 7" wide by 108" long horizontal sanding belt; Pneumatic belt tensioning; Vertical/Horizontal adjustment, 5 HP motor.

-- 3rd Station - Horizontal 7" wide by 108" long sanding belt; Vertical/Horizontal adjustment, 5 HP motor.

-- 4th Station - 8" Wide brush sandinig head, Vertical/Horizontal adjustment; 90° Rotation.

-- Feed Chain: 5" wide; high tensile steel links joined by hardened steel pins in PTFE impregnated bushings; DELRIM plastic link pads attach to each link riding on steel hex & flat ways; urethane serrated pads attach to each link pad; feed chain powered by direct drive motor/gearbox with variable speed control.

-- Includes: Control panel at infeed with individual start/stop buttons; individual index display for each head; master stop button on control panel and at outfeed end to completely stop machine.
