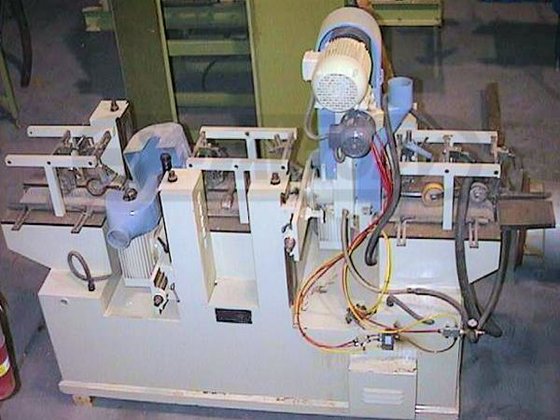

2000 MAKOR MEC 4 PROFILE
Location:
United States
Price:
$22,280 USD
Manufacturer:
MEC
Model:
MEC 4
Elect./Voltage:
220/380 V/460, 60 Cy, 3 Ph.

Specifications

Condition:
used
Year:
2000
Recnum:
SP-010481
Comments:
A lot of machine & equipment value for the money!
Machtype:
PROFILE SANDER (FEED-THRU - DISK / BELT
Condition info:
(6-8) Very good condition [8]
Current status:
Active
Elect./voltage:
220/380 V/460, 60 Cy, 3 Ph.
Appr. repl. cost:
80000

Description

7.5" Max. width, 3/8" - 3-1/8" thickness cap., min. part length 21",

-- max. sanding wheel disk 8" dia. x 4.5" on sides and 8" on top.

-- All spindles with automatic compensation.

-- (3) Sanding stations, station 1 & 2 are opposed disk and 3 has a disk or a belt that can flip one or the other as needed,

-- The belt has 4 Hp motor at 1400 RPM, Oscillation of sanding belt, Up to 5" wide belt,

-- The disks all each with 3.5 HP - 1,400 RPM spindle, direct motor drive, 4" spindle length, 360° fully tilting and adjustable up & down on dove tail slides.

-- 30 - 195 FPM variable feed speed, common feed drive on (3) small 6" wide X 20" long seamless rubber conveyor belts placed between the sanding heads, adjustable overhead holdown wheels between the heads.

-- Complete with: Dust hoods and electronic control panel/ timers for compensation. Actual model "4 MEC E".
