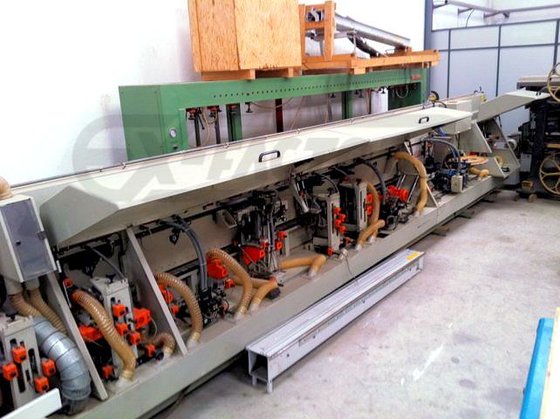

HOLZ-HER 1448 ACCORD EDGEBANDER [EO-011969]
Location:
Spain
Price:
$28,386 USD
Manufacturer:
Accord
Model:
1448 ACCORD

Specifications

Condition:
used
Recnum:
EO-011969
Comments:
A really well equipped & maintained "large" HOLZ-HER w/ Pre-milling and Corner Rounding!
Machtype:
EDGEBANDER
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
380/400 V, 50 Cy, 3 Ph.
Appr. repl. cost:
110000

Description

Granulate glue system with selector switch to direct glue extrusion either to the workpiece or to the edge material, up to 25 mm (approx. 1") solid wood banding & 3 mm PVC capacity.

-- Equipped with: Automatic magazine for coil, strip & solid edgebanding; HD guillotine for 3 mm PVC.

-- Pressure section with (3) large dia. rollers, each w/individual pneumatic plunge & pressure control, powered 1st roller w/electronic speed control synchronized with chain feed speed.

-- Workstations: Pre milling station with: (2) 2.0 kW (2.6 HP) 9,000 RPM motors.

-- Double motor end trim (1 HP - 5,500 RPM ea.), adjustable 0 - 10° for chamfer cuts; top & bottom flush trim unit (2.7 HP - 200 Cy HF-motors), SIKO digital readouts. Top & bottom fine trim unit (1.1 HP - 200 Cy HF-motors), bevels 0 - 45°, SIKO digital readouts.

-- Corner rounding units for top & bottom of leading & trailing corner when edgebanding all four sides (4 motors, 0.6 HP - 200 Cy ea.), SIKO digital readouts.

-- Flush trimming and chamfering (2 motors, 1 HP - 200 Cy ea.) tiltable 0 - 45°.

-- Top & bottom profile scrapers for up to 3 mm thick PVC banding, radius range from 0.8 - 5 mm, vertical & horizontal tracing shoes, SIKO readouts for easy set-up, overhead PVC filter unit eliminates PVC chips being sucked in by dust collector.

-- Top & bottom jump buffing unit (0.7 HP - 2,600 RPM ea.), tilts 0 - 30°. Variable feed speed 12 - 24 MPM. (39 - 78 FPM), panel overhang beyond chain 35 mm (1.38").

-- Complete with: MICROPROCESSOR for line control and glue temperature & flow, PCS for remote control panel setting of "radius or fine trim", 20 KVA Frequency changer, out board panel support and sound enclosure w/interior lights over all milling units.
