2006 D M C MASTERBRUSH

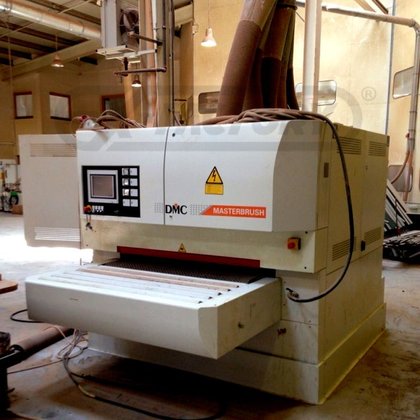

2006 D M C MASTERBRUSH DENIBBING SANDER (53" BRUSH) [FD-010703]

Location:
Price:
$44,564
Manufacturer:
D M C
Model:
MASTERBRUSH

Specifications

Condition:
used
Year:
2006
Recnum:
FD-010703
Comments:
Features (2) different "sanding modes" for optimal Denibbing!
Machtype:
DENIBBING SANDER (53" BRUSH)
Condition info:
(6-8) Very good condition [8]
Current status:
Active
Elect./voltage:
400 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
130000

Description

D M C Masterbrush 1350 DB Denibbing Sander, working width 53" (1,350 mm), with (3) modules heads.

-- (1) 2 HP Orbiting head has 5.9" (150 mm) and 7.87" (200 mm) dia. vertical brushes (in a row).

-- (2) 5.5 HP counter-rotating brushes are 15.74" (400 mm) in diameter; brushes are adjustable from 0° up to 8° angle with manual adjustment of working height.

-- Double oscillating rod out-feed turbo blowers for panel cleaning.

-- 3 HP inverter controlled variable speed feed from 12 (4.5 MPM) to 59 FPM (18 MPM) with centering device and high traction capability.

-- 35.8" (910 mm) constant pass line height

-- Vacuum bed with 15 HP vacuum blower and fan silencer.

-- Roller table extensions at in- & out-feed.

-- Oversized parts in-feed protection device.

-- 12.3 kW total power required, machine weight: 6,415 lbs. (2909.8 kg).

-- HYDRA NC V-Pad" electronic control with 10.4" color LCD touch screen.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
