Cole-Tuve ARS-2.2 (PK35) Sahinler Angle
Location:
Maryland, USA
Manufacturer:
Cole-Tuve
Model:
ARS-2.2 (PK35)
Weight:
800 lbs.

Specifications

Condition:
new
Stock number:
2379
Fob:
Maryland
Pipe:
2" Schedule 40 (SP)
Angle:
2" x 2" x 1/4" Leg Out
Tubing:
2-3/4" x .080" Round (SP)
Weight:
800 lbs.
Channel:
2-3/8" x 1-3/16" x 1/4"
Delivery:
Stock
Flat bar:
5" x 5/8" Easy Way
Electrics:
2 HP, 220 Volt, 3 Phase
Solid bar:
1-3/8" Square and Round (SP)
Rolling speeds:
7.5 and 15 fpm
Diameter of shaft:
1.96"
Subcategory:
Metal fabricating
Subcategory 2:
Bending rolls, angle

Description

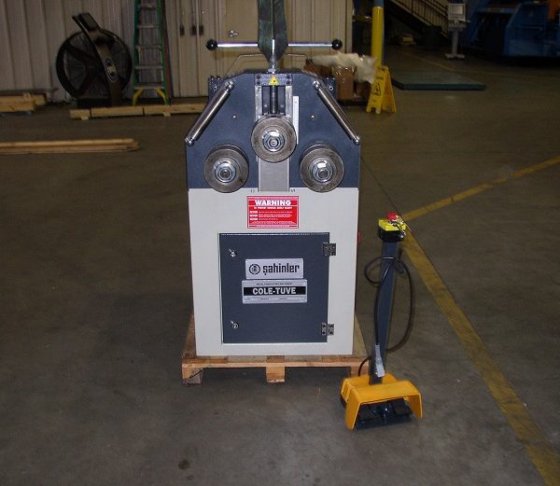

New Sahinler Angle Bending Roll
Model ARS-2.2 (PK35)
Capacities:
Pipe.....: 2" Schedule 40 (SP)
Tubing...: 2-3/4" x .080" Round (SP)
: 2-3/8" x .125" Square
: 2" x 1-1/2" x .125" Rectangle
Flat Bar.: 5" x 5/8" Easy Way
: 2-3/8" x 3/8" Hard Way
Solid Bar: 1-3/8" Square and Round (SP)
Angle....: 2" x 2" x 1/4" Leg Out
2" x 2" X 3/16" Leg In (SP)
Channel..: 2-3/8" x 1-3/16" x 1/4"
Note: Shapes above marked (SP) require optional special rolls. The other
shapes can normally be rolled with standard rolls supplied with machine.
Rolling leg in requires optional leg-in guide rolls and may require special
rolls.
Specifications:
Diameter of Shaft : 1.96"
Rolling Speeds : 7.5 and 15 fpm
Electrics : 2 HP, 220 Volt, 3 Phase
Weight : 800 lbs.
Features:
Steel Frame
Two rolls driven
Two Rolling Speeds
Manually adjusted vertical roll
Hardened and Ground Shafts and gears
Shafts rotate on opposed tapered roller bearings
Lateral straightening rolls
Linear Scale to indicate position of vertical roll
Horizontal and Vertical Operation
Full Cabinet Base with Door
Movable Foot Control
FOB: Maryland
Delivery: Stock
