Location:
Naples, FL, USA
Price:
$293,000 USD
Model:
JT4020 All Terrain

Specifications

Condition:
used
Year:
2012
Stock number:
15106
Type:
All Terrain Pipe
Width:
87"
Height:
96"
Length:
337"
Thrust:
36,000 lbs
Weight:
28,200 lbs
Max flow:
70 gal/min
Pullback:
40,000 lbs
Fuel type:
Diesel
Entry angle:
10°-16°
Displacement:
409 cubic inches
Max pressure:
1300 psi
Pipe diameter:
3.63"
Joint diameter:
4.13"
Make and model:
Cummins QS b6.7
Min bend radius:
205'
Rated engine rpm:
2400 rpm
Max spindle speed:
240 rpm
Min bore diameter:
6.25"
Fuel tank capacity:
55 gal
Ground drive speed:
2.5 mph
Max carriage speed:
120 ft/min
Max spindle torque:
5000 ft/lbs
Number of cylinders:
6
Emissions compliance:
EPA Tier 3
Engine cooling system:
Liquid
Hydraulic tank capacity:
36 gal
Weight of pipe and large box:
5580 lbs (18 pipe)
Weight of pipe and small box:
3150 lbs (9 pipe)
Manufacturer's gross hp rating:
190 hp
Subcategory:
Hdd drills

Description

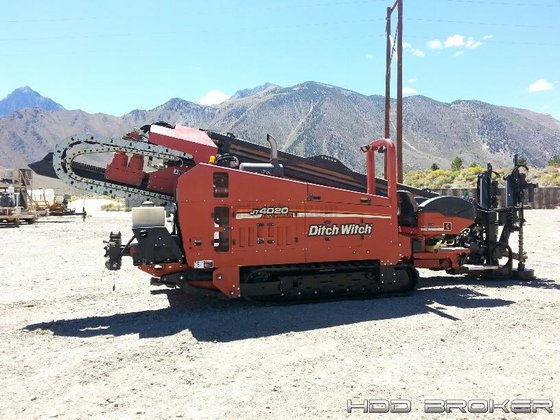

General Description: 2012 Ditch Witch JT4020 All Terrain Directional Drill: -2,004 hours
Pipe: 700 Feet of All Terrain Drill Pipe included.
Accessories: Rockmaster Housing.
Additional Information: NOT INCLUDED - Seller has additional Ditch Witch JT4020 All Terrains available - See Reference#: 15104 and 20530.
