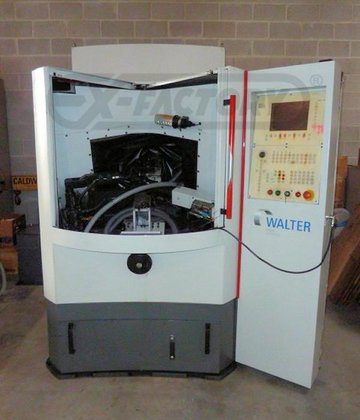

2005 WALTER WOODTRONIC CNC 5
Location:
United States
Price:
$40,410 USD
Model:
WOODTRONIC CNC 5

Specifications

Condition:
used
Year:
2005
Recnum:
GS-011269
Comments:
Late model in VG condition ready to grind for you!
Machtype:
AUTOMATIC FACE & TOP GRINDER
Condition info:
(6-8) Very good condition [6]
Current status:
Active
Elect./voltage:
230 V, 60 Cy, 3 Ph.
Appr. repl. cost:
175000

Description

This machine is suitable to sharpen automatically the face and top on carbide tipped saw blades in one set-up. The software enables free programming of special tooth shapes at any sequence.

-- Saw blade dia. 3.1" - 28", (80 - 800 mm); saw blade center bore dia. from 10 mm upwards, saw body thickness up to 12 mm.

-- Tooth pitch 0.6" - 4.3" (4 - 126 mm), breast angle (rake angle) -40° to +45°, back clearance angle 1° to 40°.

-- Max. grinding wheel dia. 200 mm, grinding wheel arbor dia. 32 mm, grinding spindle drive: 1,5 HP (1,1 kW) - 3,000 RPM.

-- Coolant pump output 60 L/Min at 3 Bar (44 PSI), coolant tank capacity approx. 150 liter.

-- Connected load approx. 17 HP (12 kW), machine weight approx. 2,200 kG, dimensions: (w-d-h) 1,530 x 1,860 x 2,275 mm.
