Location:
Baltimore, MD, USA
Price:
No price
Model:
SV-4020

Specifications

Condition:
used
Stock number:
5585
Subcategory:
Cnc mills

Description

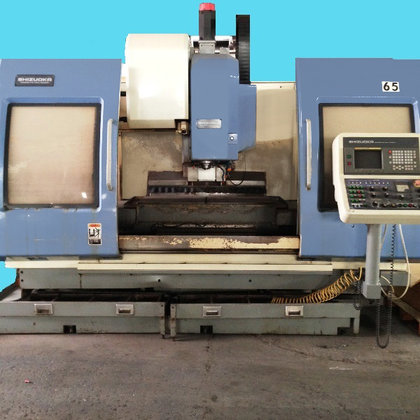

SHIZUOKA METAL MASTER SV-4020 CNC VERTICAL MACHINING CENTER with FANUC SERIES 18-M CNC CONTROL
MODEL: METAL MASTER SV-4020
S/N: 74018 “1994”
MADE IN SHIZUOKA, JAPAN
SPECIFICATIONS:
TRAVELS:
X-AXIS TRAVEL:  40"
Y-AXIS TRAVEL:  20"
Z-AXIS TRAVEL:  20"
TABLE SIZE:  52" x 20"
MAXIMUM TABLE LOAD:  2,200 LBS
SPINDLE:
SPINDLE SPEED:  100 - 10,000 RPM
SPEED CHANGE:  INFINITELY VARIABLE
SPINDLE TAPER:  40
SPINDLE DIA:  2.52"
SPINDLE MOTOR:  20HP FOR 30 MIN, 17.5 HP CONTINUOUS
FEEDS & SPEEDS:
RAPID:  787 IPM X & Y, 630 IPM Z
CUTTING FEED/JOG:  196.7 IPM
SERVOS:  X & Y: 2.4 HP, Z: 4.7 HP
AUTOMATIC TOOL CHANGER:
STORAGE CAP:  18 TOOLS
TOOL SHANK:  BT 40
MAX DIA.:  3.7"
MAX LENGTH: 11.8"
MAX WEIGHT:  17.6 LBS
RANDOM TOOL SELECTION
REQUIREMENTS
POWER REQUIREMENT:  AC200/220V, 31 KVA
AIR REQUIREMENT:  72 - 130 PSI.
COOLANT TANK CAP:   66 GAL
MECHANICAL SPECIFICATIONS:
MACHINE FLOOR SPACE: 184" X 142"
HEIGHT: 110"
WEIGHT: 17,600 LBS
EQUIPMENT INCLUDED:
FANUC 18-M CNC CONTROL
SPINDLE & OIL CHILLER
