2016 NOVA KDK-18EXT (QTY=3) COMPLETE
Location:
United States
Price:
$290,200 USD
Manufacturer:
American
Model:
KDK-18EXT (QTY=3)

Specifications

Condition:
new
Year:
2016
Recnum:
BD-010122
Comments:
American made equipment at an affordable price!
Machtype:
COMPLETE KILN SYSTEM
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
305000

Description

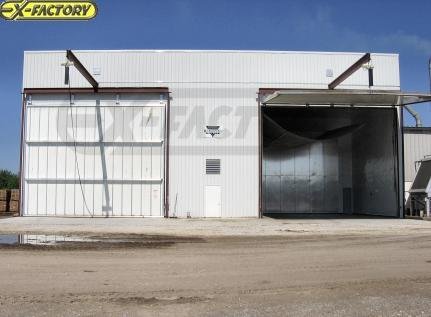

(3) NOVA Kilns system designed to hold 20,885 bd/ft 4/4 lumber (49m3) and 27,311 BdFt 8/4 lumber (64 m3) each . __ Kilns have internal dimension: H 17'6" (5.53m), D 21'6" 6055m9), W 28'(8.53m) each. __ Loading door openning 14'6" (24.42m) x 27'3" (8.3m). 1/8" aluminum sidewall bumpers, side hinge doors, exterior instalation __ High horse power heat requirment of 314k BTU/Hour High HP Heat requiredment 523k BTU.__ Eectrical requirment 480 VAC, 3 Phase, 60Cy; 11 kw/hour max. __ Timber dry management control system with touch screen opoerator interface, data recording, optional remote acces & networking capability __ Price inludes Manual feed wood waste boiler; Utilizes: logs, slabs and large chips, Woodwaste furnance stndard : T-3000 providing 850,000k BTU output $27,083, Plumbing connection kit $4,500: One kiln to one woodwaste furnance. replacement part kiln $730. __ Features: End loading Kilns with side hinged doors for easy access to the lumber stacks, track & cart to load the lumber stacks, circulating fans, powered exhaust system, and basic control instrumentation package. __ Options: High horse power heat and exaust: Only needed where drying soft woods $4,000. Timber dry management network capability $500. Heat treting controld and sensors $750. Control Room with heated air intake; 12'H x 4'D x 28' W $4850 (included on the price).Top hinge door openin system; includes 230V electric chain hoist $5,200 (included in the price). cannopy to cover door opening system and kiln apron $3,200 . Heated floor system, not needed to in tropical or subtropical locations $4,350. Replacement kit $5,300 (included on the price). Manuals. __ Assambly supervision / per week charges + all expenses $2,200 (not included in the price)
