1997 MORBIDELLI AUTHOR 660 BORING
Location:
Canada
Price:
$53,730 (USD)
Model:
Morbidelli AUTHOR 660

Specifications

Condition:
used
Year:
1997
Recnum:
BF-010560
Comments:

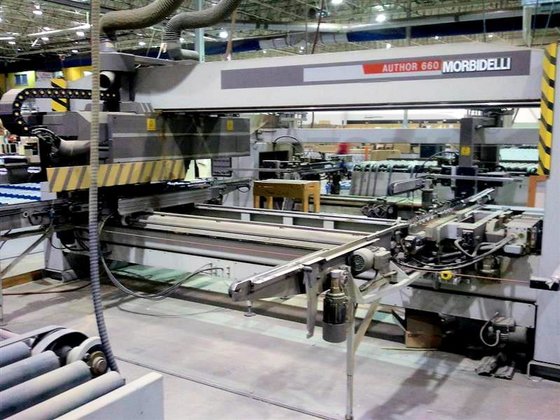

An exceptionally well-maintained MORBIDELLI "Author 660" under power & available for demo!
Machtype:
BORING MACH. ( FEED THRU CNC W/ROUTING)
Condition info:
(3-6) Good condition [5]
Current status:
Active
Elect./voltage:
380 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
380000

Description

MORBIDELLI AUTHOR 660/FMS BORING MACH. ( FEED THRU CNC W/ROUTING):

-- Specifications:Over all axes stroke for the PTP heads; "X" axis 142.9" (3,630 mm), "Y" axis 52.9" (1,344 mm) overall & 26.4" (672 mm) x 2 panels, "Z" axis stroke 4.5" (115 mm);Max working dimensions for single-panel size is 122" long x 51.1" wide (3,100 mm x 1,300 mm); Max material thickness 1.6" (40 mm), min material thickness 0.47" (12 mm).Max. 2-panel size is 122" long x 23.6" wide (3,100 mm x 600 mm); min panel size is 9.8" long x 5.9" wide (250 mm x 150 mm)

-- Positioning speed:"X" & "Y" Axis 164 FPM (50 MPM), "Z" axis 68 FPM (21 MPM); vector speed at 246 FPM (75 MPM), acceleration/deceleration ramp 520 ms.In-feed / central / out-feed conveyor, each with (4) 0.35 HP (0.25 kW) motors, lineal positioning speed of the conveyor system is 174 FPM (53 MPM)

-- Boring units:(2) Independent PtP boring units, each head with (1) 4 HP (3 kW) - 3,000 RPM motor;Each head with 29-Independent vertical spindles, (13) spindles in "X" axis & (16) spindles in "Y" axis.(8) Horizontal units, (13) spindles in "X" axis & (16) spindles in "Y" axis

-- Machine feed-thru system: Equipped with (4) 19-Spindle (2-LH & 2-RH) horizontal drill mounted to the feed thru section of the "Author 660"; each unit with 1.5 HP (1.1 kW) - 2,800 RPM motors, on 32 mm centers.

-- Machining:(2) 8.8 HP (6.6 kW) vertical routers with MK2 tapers, variable speed from 9,000 - 18,000 RPM.

-- Operator & Machine Control:Separate control cabinet with: "TRIA 7500" CNC 32-Bit multi-processor (100% MS/DOS compatible), 512 KB user RAM, 14" monitor, ergonomic extended keypad with (18) function keys, 3-1/2" floppy disk drive.RS-232 serial port, can be linked directly to IBM compatible PC, offers incredible list of functions from (a) auto-diagnostic to (z) zooming; programs can be transferred via diskette or possible download by wire.

-- Complete With:(2) 140 mm dia. dust extraction outlets; all associated manuals & documents.

-- Actual Model is MORBIDELLI AUTHOR 660/FMS
