1993 MASTERWOOD SPEEDY 207 CNC

1993 MASTERWOOD SPEEDY 207 CNC BORING MACHINE (P TO P) [BP-010977] in Canada

Location:
Canada
Price:
$8,750 USD
Manufacturer:
Masterwood

Specifications

Condition:
used
Year:
1993
Recnum:
BP-010977
Comments:
REDUCED AGAIN! Works Great, Well maintained. Can be viewed in operation.
Machtype:
CNC BORING MACHINE (P TO P)
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
575 V, 60 Cy, 3 Ph.
Appr. repl. cost:
42000

Description

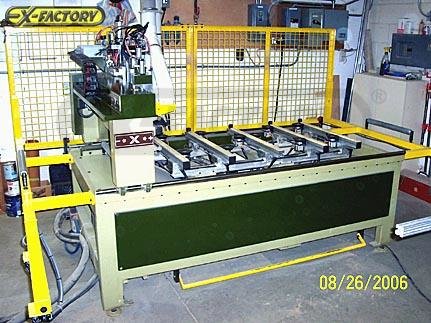

MASTERWOOD SPEEDY 207 CNC BORING MACHINE (P TO P):

-- Specifications:Working Capacity "X" Axis is 54.7 (1,390 mm), "Y" axis 34.5" (870 mm), "Z" axis stroke 3.3" (85 mm), max. material thickness 2" (50 mm);When using the mirror-image function, a single 110" (2,800 mm) long panel can be processed by moving the panel to the opposite side stops.

-- Positioning Speed:"X" & "Y" axis is 131 FPM (40 MPM), "Z" axis is 16 FPM (5 MPM)

-- Worktable:(4) Movable panel supports, ea. with (2) adjustable vacuum cups; (4) pneumatic pop-up back stops & (2) pneumatic pop-up side stops for material positioning.

-- Boring unit:2 HP (1.5 kW) motor - 4,000 RPM; (5) independent vertical spindles with (3) spindles in "X" axis & (2) spindles in "Y" axis.(1) "X" Axis horizontal spindle with (1 + 1) spindle for edge drilling into the right & left panel edge; (1) "X" axis grooving saw with 100 mm dia. blade - 4,000 RPM.

-- Operator & Machine Control: MASTERWOOD "CN 4" Multitasking NC Controller: Mounted on casters for user-friendly positioning; alphanumeric keypad; 128 KB storage;8" semi-graphic monitor, features English or Italian operating language.

-- Complete with:(1) 40 m³/Hr vacuum pump; rear safety bars & safety light barriers in front of machine.

-- Actual model is MASTERWOOD Speedy 207. .
