2016 ROSE MACHINERY GBUB-80 GLUE-BOUND

2016 ROSE MACHINERY GBUB-80 GLUE-BOUND UNIT BREAKER [FJ-010470] in United States

Location:
United States
Price:
$35,600 USD
Manufacturer:
ROSE MACHINERY
Model:
GBUB-80

Specifications

Condition:
new
Year:
2016
Recnum:
FJ-010470
Comments:
Great time and material saver - call for details!
Machtype:
GLUE-BOUND UNIT BREAKER
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
45000

Description

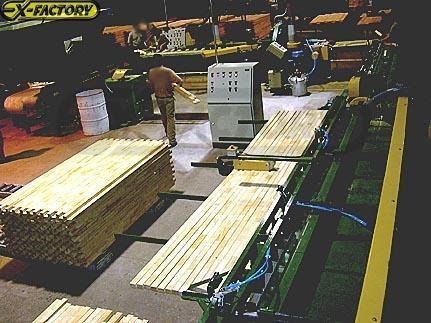

Machine breaks the glue bond in a staggered stack of fingerjointed material - see picture of material with the checkerboard end pattern. __ 16'-10" max. opening for a single 4'x 4' x 16' unit; backstop platem loicks at 12" increments (2' min. load length); pressure platen 18" with hydraulic stroke; 5' x 5' platens ; 5 HP hudraulic unit with pressure compensated pump provides aprox. 1 minute squeeze time; with 5' x 25' footprint. __ With equalized hydraulic squeeze to provide uniform load compression; hydraulic length setup with air operated locking pins on the backstop platen; backstop position indicator; simple manual controls for load length and crushing stroke; with heavy structural steel construction, eassy to maintain, and without cables! __ Options available at time or order: __ 10 HP hydraulic unit with approx. 30 second squeeze time, add $2,350Double unit capacity; crushes (2) 4' x 4' loads with 5' x 10' platen, add $12,400 __ Automated controls; (2) remote controls for initiation of pressing stroke, UTOMATIC OPEN ANDF HYDRAULIC SHUT DOWN, plc CONTROLS WITH AUTOMATED LOAD LENGTH ADJUSTMENT WITH ILLUMINATED INDICATORR, ADD $3,900
