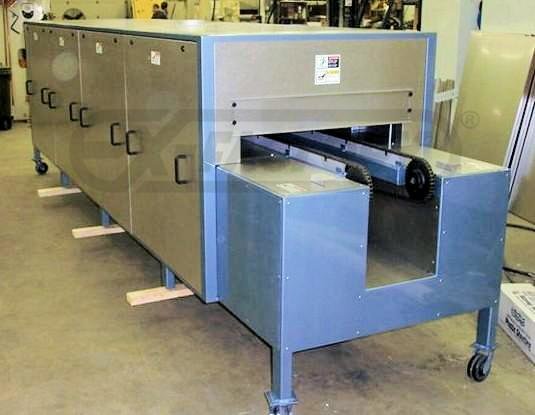

2016 DAVID WEISMAN, LLC STR 9-12 INFRARED TUNNEL ELECTRIC INFRARED DRYER [FO-010378] in United States
- United States
- $58,500 USD
- DAVID WEISMAN, LLC
- STR 9-12 INFRARED TUNNEL
Oven Heaters & Structure/Enclosure by FIN-EX Contractor. __ The electric Infrared heater is Shortwave; T3 lamps, twin tube gold based heater lamps mounted in stainless steel reflector modules heat up & cool down very quickly; the top heater modules have vertical adjustability. __ (2) Zones of temperature control (utilizing percentage of power control) in the Oven in machine direction; bottom only followed by top only. __ The Oven ceiling, walls, and floor constructed of structual steel with insulated panels and aluminized sheet metal skins to contain and conserve energy. __ AIR RECIRCULATION & EXHAUST SYSTEMS: __ (3) TBE CFM Supply air fans/blowers are provided to bring in fresh nonsolvent laden air into the Oven enclosure near the top. __ (2) TBD CFM Exhaust blowers are provided to remove water from the oven enclosure that comes from the water based coatings as necessary. __ Customer to provide ductwork for and connect the oven exhaust outlet collars to the facility exhaust blower/facility exhaust point as necessary. __ PARALLEL CHAIN CONVEYOR SYSTEM: __ 12" Wide parallel chain conveyor supplied; Conveyor is capable of operating from approx. 10 - 150 FPM max.; work height of the trays is approx. 36" from the floor, but may be specified prior to manufacture. __ Parallel Conveyor with angled cross-bars with approx. 6-1/2" spaces between them in the machine travel direction. __ SPECIFICATION OVERVIEW __ Feed Speed from 10 - 150 FPM. __ Max. workpiece width of 14". __ Lamp Type Shortwave T3 dual emitters. __ Lamp Arrangement: (6) Top and (6) bottom. __ Electrical 480 V, 3 Ph, 60 Hz / 489 Amps. __ Machine Dimensions: 48" W x 60" H x 130" L. __ Customer responsible for Conveyor transition to and synchronization with incoming and outgoing Conveyors as necessary.
