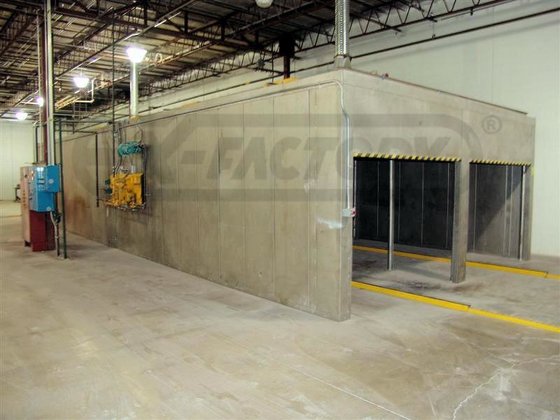

2017 FINISHING SYSTEM 12'L x 6'W x 7'H GAS FIRED OVEN [FO-010297] in United States
- United States
- 12'L x 6'W x 7'H
Oven Dimensions (overall): 6' Wide x 12' long x 7' high. __ Utilities - Electrical: 460 Volt, 3-Phase, 60 Hz; Heating Source: GAS. __ Oven will have a 400,000 BTU Burner (NEW) complete with Gas Train & temperature controllers with a maximum temperature of 200Ã‚Â° degrees. __ Oven enclosure Panels consists of:20 Ga. Aluminized 4" Thick x 12' long x 27" wide Heavy interlocking steel tongue & groove panels. __ There will be (1) Overhead turbulator type fans, 3 HP. ea. at 20,000 CFM each __ (1) 12", 1/3 HP - 1,800 CFM exhaust fan with open drip-proof motor and control. __ Control Panel will be pre-wired shop tested; free-standing NEMA-12 control panel will be furnished with circuits prewired to terminal strips. __ Includes motor starters, temperature controller, (1) door-mounted disconnect with interlock hardware to prevent opening the door without disruption the power supply. __ (1) Control voltage transformer will be furnished to reduce the voltage to 110 volts for the oven control circuits. __ Modulating "heat & temperature": Monitoring controller for temperature, operates a controller valve.
