2016 FINISHING SYSTEM 20'L X

2016 FINISHING SYSTEM 20'L X 10'W X 11'H GAS FIRED CONTROL OVEN [FO-010278] in United States

Location:
United States
Price:
$25,400 USD
Manufacturer:
American
Model:
20'L X 10'W X 11'H

Specifications

Condition:
new
Year:
2016
Recnum:
FO-010278
Comments:
American made equipment at an affordable price!
Machtype:
GAS FIRED CONTROL OVEN
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
35500

Description

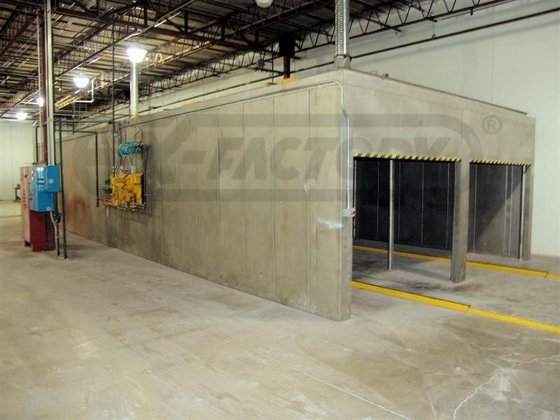

Outside Oven dimensions (overall): 10'8" Wide x 20'8" long x 11' high; Inside dimensions 10' Wide x 20' Long x 9' High __ Heating Source: Natural Gas, FM approved, New with (1) year warranty, "FIREFLAM" 500,000 BTU Burner, complete with Gas Train & Temperature controllers to 180°. __ Oven enclosure consists of 4" thick x 11' long x 27" wide heavy tongue & groove panels. __ (2) Overhead turbulator type fans, each 3 HP at 20,000 CFM; __ (1) 12", 0.5 HP - 1,000 CFM exhaust fan with open drip-proof motor and control. __ Control Panel will be pre-wired shop tested; free-standing NEMA-12 control panel will be furnished with circuits prewired to terminal strips. __ Includes: (4) Motor starters, temperature controller, (1) door-mounted disconnect with interlock hardware to prevent opening the door without disruption the poweer supply. __ (1) Control voltage transformer will be furnished to reduce the voltage to 110 volts for the oven control circuits. __ Modulating "heat & temperature" indicating controller for temperature, operates a controller valve.__ To have one set of two 5' doors at one end cost add 1,280.00 and to have a set of two 5' door at both ends add 1,900.00 __ All new parts will carry a (1) year warranty.__ Any permits needed are the responsibility of the buyer. __ Will deliver and furnish (1) day of supervision for 1,150.00.
