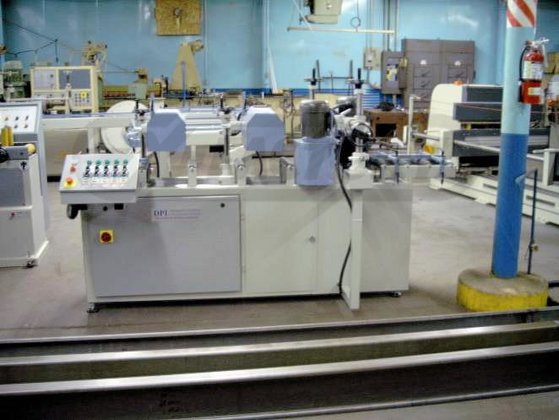

2016 DPI DE-NIBBING SAND DN4-104

2016 DPI DE-NIBBING SAND DN4-104 4 HEAD SANDING MACHINE [FD-300001] in United States

Location:
United States
Price:
$21,200 USD
Manufacturer:
American
Model:
DE-NIBBING SAND DN4-104

Specifications

Condition:
new
Year:
2016
Recnum:
FD-300001
Comments:
American made equipment at an affordable price!
Machtype:
4 HEAD SANDING MACHINE
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
240/480 V, 60 Cy, 3 Ph
Appr. repl. cost:
26500

Description

Denibbing Sander for Mouldings - Sanding machine comes with (2) overhead sanding units with (1 or 2) on each side. __ Each sanding unit: Fixed speed; sanding units adjustable up & down only, with some tilt. __ Sander designed for use with loose sandpaper finger-style brushes, Tampico backing or impregnated wire brushes. __ Conveyance by raised surface slider belt, holddowns & guides on the sides keep the workpiece in place. __ Dust Collection hoods cover each unit. __ Technical data: 48" Length, 39" width, 55" height. __ Max. working thickness of 3"; max. working width of 12". __ Min. working length of 16"; dust suction hood dia. of 4". __ Max. sanding brush height of 4", max. sanding brush width of 14", max. sanding brush dia. of 10". __ Brush spindle dia. of 1".__ Variable feed speed from 30 - 170 FPM; 1 HP sanding motor, 1 HP conveyor motor. __ Voltage 208 V, 3-Phase, 7 Amps.
