2016 OPTI-SAND L224 SEALER/DENIBBER SANDER

2016 OPTI-SAND L224 SEALER/DENIBBER SANDER [FD-010442] in United States

Location:
United States
Price:
$41,800 USD
Manufacturer:
OPTI-SAND
Model:
L224

Specifications

Condition:
new
Year:
2016
Recnum:
FD-010442
Comments:
(8) Heads to sand (4) sides of your profile; ...this machine will give you the options you need to get THAT look..
Machtype:
SEALER/DENIBBER SANDER
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
208-230/460-575 V, 60 Cy, 3 Ph
Appr. repl. cost:
41900

Description

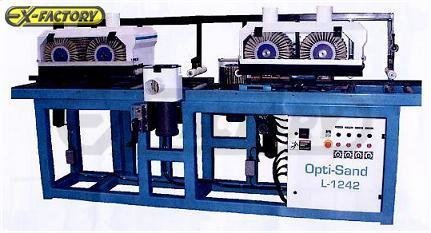

8-Head Abrasive Brush Sander with (2) top, (2) bottom & (4) side heads; 12" width and 5" height capacity. __ Top & Bottom Heads: (2) Overhead and (2) underneath horizontal counter-rotating arbors, equipped with a combination of abrasive & brush loadings. __ 12" Long arbors x 12" max. dia. sanding discs, heads are mounted in pairs of (2) on a common slide assembly, hand wheel height adjustment with locking mechanism and tilt up to 15°. __ (4) 1 HP Motors with inverter control for 200 - 1,200 RPM. __ arbor rotation speed. __ (4) Side mounted vertical abrasive/brush heads (2 on each side), both heads tilt and are hand crank adjustable up-and-down and in-and-out. __ 6" Long arbors x 8" dia. max. sanding discs, 0.5 HP motor drives each arbor with inverter for 200 - 1,200 RPM. __ All arbors 50 mm hexagonal for positive rotation. __ 0" - 5" Max. manual part height adjustment via locking hand wheels; 86" long fixed roller conveyor feed bed with rubber covered rollers, (3) 0.25 HP DC motor drives with variable feed speed 10 - 100 FPM. __ (11) Full width overhead soft rubber pressure rollers located at infeed, outfeed and between sanding heads, rollers are connected overhead for quick height adjustments. __ Includes: Centralized control panel with digital displays for spindle speed and feed rate. (8) 4" dia. dust exhaust connections, approx. 2,800 CFM. __ Options: 20 - 200 FPM variable drive please add ...$ 475; Set of leveling pads, add ...$ 775; 575 Volt, 3-Phase, add ...$ 2,650. - NOTE: Abrasives and cores are not included in this package.
