2016 DPI MULTI-FLEX SPRAY SP2

2016 DPI MULTI-FLEX SPRAY SP2 FEED THROUGH SPRAY UNIT HO2 [FE-010852] in United States

Location:
United States
Price:
$38,870 USD
Manufacturer:
American
Model:
MULTI-FLEX SPRAY SP2

Specifications

Condition:
new
Year:
2016
Recnum:
FE-010852
Comments:
American made equipment at an affordable price!
Machtype:
FEED THROUGH SPRAY UNIT HO2
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
220 or 440 V, 60 Cy, 3 Ph.
Appr. repl. cost:
62500

Description

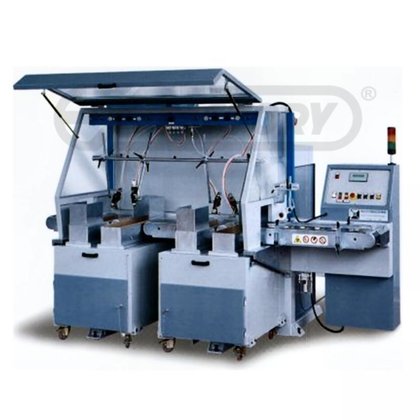

This machine has been designed to spray UV and/or water and solvent based coating onto mouldings and similar linear workpieces. It includes 2 separate spray stations and 6 guns. Each station is independently set up for water/solvent based coatings. __ Totally enclosed spray booth comes with Teflon coated steel recovery cabinet for easy changeover and cleaning. Downdraft in spray booths draw overspray into recovery cabinets for reclamation while exhausting into two speraaate chambers to eliminate confluence of diffenent coatings. The cabinet has an Andrae style paper filter with horizontal fiber filter and horizontal metal mesh filter.__ Tepered glass wdindows for viewing on three sides. Easy access door for adjusting guns and cleaning. __ Plumbed for six gun configuration. Three guns per each staion. Includes gun mounting and adjustment rods for 6 guns. __ Monameters measure air pressure on both side of filters and triggers alarm when filters are colgged. __ Comes wiht integrated infeed and outfeed conveyors with variable speed and urethane belting plus intermediate conveyor in between spray stations. Entry conveyor equipped with guides. __ Machine is operated with a central control panel. Gun timing controlled by an electronic PLC that times the sprauy guns in relatiojn to the length of the work piece and the feed speed. Precise gun timing cuts down on coating usage. PlC records number of workpieces and total linear feet processed in session. __ TECHINCAL DATA: FEED SPEED -- 30 - 160 FPM __ EXHAUST FAN MOTOR -- 3HP, CONVEYOR MOTOR -- 1 HP, FAN DIAMETER 11.75 INCHES, FAN DELIVERY -- 3600 CFM, WORKTABLE HEIGHT -- 35.5 INCHES, MINIMUM PIECE LENGTH -- 37 INCHES (10 INCHES W/BRIDGES), PIECE WIDTH -- 0.75 - 12 INCHES, PIECE THICKNESS -- 0.25 - 3.9 INCHES, ELECCTRICAL CONNECTION -- 220V 60Hz 3 PHASE, 3 KW. __ MACHINE DIMENSIONS: LENGTH -- 162 INCHES, WIDTH -- 66 INCHES, HEIGHT -- 87 INCHES, NET WEIGHT (est.) -- 1400 pounds. __ Price for Removable bridge to accommodate shorter work pieces. Beridges are powerde by tintermediate conveyor. - 718.00$ __ THIS IS ONE OF THE MOST VERSAITLE SPAY MACHINES THERE IS FOR MOULDING.
