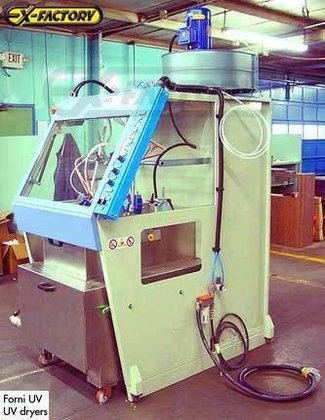

2017 DPI FLEX SPRAY/UV OVEN UV FINISH SYSTEM (SPRAY & OVEN) [FS-010200] in United States
- United States
- FLEX SPRAY/UV OVEN
Compact design, single station Spray Machine with 12" width cap. x 3-1/8" max. part thickness and 39-1/4" min. part length. __ Standard specifications: (4) Sets of gun mounts made from stainless steel rods and HDPE mounting knuckles, (4) stainless steel C.A. TECHNOLOGIES "100" standard UV automatic spray guns with (1) DYISHENG diaphragm fluid pump. __ Complete with: Stainless steel coated recovery cabinet with spigot for recycling back into sprayer, front access door with large viewing window & gas shock support arms; 1.5 HP motor with 11.8" dia. exhaust fan rated at 2,350 CFM; washable filters configured to return over-spray into recovery pan. __ Feeding: Variable speed belt conveyor from 65 - 325 FPM, 1.5 HP feed motor; working height 35-3/8". __ UltraViolet Oven: Feed through system for immediate curing of linear profiled material, designed for curing of opaque UV coating. __ Equipped with: (8) Gallium UV lamps (400 WPI) with variable lamp power, mounted for 3 sided curing. Variable speed conveyor from 20 - 250 FPM.
