2016 KERN HSE 100 (150

2016 KERN HSE 100 (150 WATT) LASER (CO 2) [LW-010068] in United States

Location:
United States
Price:
$118,945 USD
Manufacturer:
Kern
Model:
HSE 100 (150 WATT)

Specifications

Condition:
new
Year:
2016
Recnum:
LW-010068
Comments:
Brand new KERN! with (1) year warranty! Call for lead times.
Machtype:
LASER (CO 2)
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
220 V, 60 Cy, 1 Ph.
Appr. repl. cost:
118945

Description

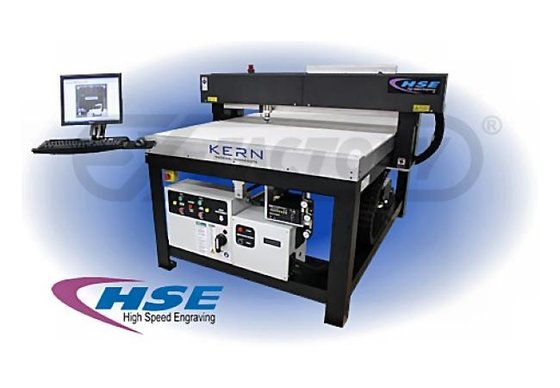

Kern HSE Series lasers are their largest and also most popular machines. __ This HSE 100 (52 Series) laser is equiped in the 150 watt configuration and also has the metal cutting option for cutting .090" mild steel and .075" stainless steel. __ Machining area is 52" x 100" and will accept a 3" thick work piece. Options to accept up to 12" thicknesses are also available. __ The tempered steel frame can handle heavy metal sheets, and large stone slabs such as marble or granite with weights up to 2,500 Lbs. __ High speed servo motors and anti-backlash belt drives coupled with flying laser optics insure accurate engraving speeds up to 150 IPS and lightening fast acceleration reaching 5 G's! __ Table accuracy is +/- 0.004"; Repeatability is 0.0005"; and Straightness is +/- 0.002". __ Variable air controls with pressurized laser nozzle and 7" deep vacuume table with honeycomb table top and blowers that provide fume and debris removal are also standard features. __ The machine is controlled by a DELL Optiplex computer which manages the proprietary KCAM software and features a 17" flat screen LCD monitor. The electrical panel is UL certified and many other safety features such as Emergency Stop switches, electrical interlocks, and "in use" safety beacon have been incorporated into the design. __ A chiller is included. __ A CorelDRAW software package is included and free KCAM software upgrades are provided free throughout the life of your system. __ (1) year warranty included.
