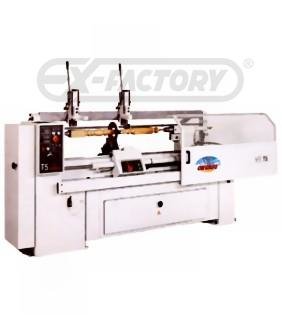

2016 CENTAURO T5-1600 COPY LATHE
Location:
United States
Price:
$58,700 USD
Manufacturer:
CENTAURO
Model:
T5-1600

Specifications

Condition:
new
Year:
2016
Recnum:
LC-300045
Comments:
Considered to be one of the best Copy Lathes on the market today!
Machtype:
COPY LATHE
Condition info:
Brand new with warranty
Current status:
Brand New
Elect./voltage:
230 V, 60 Cy, 3 Ph.
Appr. repl. cost:
60000
Subcategory:
Lathes & carvers

Description

63" Max. between centers. __ 8-3/4" Height of centers over bed. __ Max. turning dia. (manual turning) 9-3/4"(7"). __ Max. copying dia. 3-1/2" (2-1/2"). __ Max. dia. permitted by travelling steady 5-1/2"(4"). __ 4 HP main motor, 600 - 900 - 1,300 - 1,500 - 1,800 - 2,200 - 3,000 RPM spindle speeds. __ 1 HP hydraulic variable speed carriage with tool post and revolving steady rest. __ Turning accomplished with a single Tantung gouge on hydraulic copying unit. __ Highly sensitive tracer working on both wooden samples and profile templates. __ Capable of two working passes on the profile. __ Push button electric controls. __ Electric spindle brake. __ Spindle reversing gear to change from copying to manual working. __ Standard: Motor protection switch and emergency push-button. __ Standard: Revolving stead 3-1/2" (max. square 2-1/2" x 2-1/2") with reducing bushing and pre-cutting knife. __ Standard: Ball bearing tailstock center 1/2". __ Standard: Driving center with (2) interchaneable jaws 1-1/8" and 1-3/4". __ Standard: (2) Veritcal back knives for making dowel pins. __ Standard: One parallel turning tool 1" x 1" x 4" with support. __ Standard: (1) Tantung gouge, radius 1.2mm. __ Standard: Rear face plate 5" and tool support 11-3/4" for hand turning. __ Standard: Dust port 4"
