2016 DPI FLEX SPRAY/UV OVEN

2016 DPI FLEX SPRAY/UV OVEN STAIR TREAD FINISHING LINE [FS-300001] in United States

Location:
United States
Price:
$91,800 USD
Manufacturer:
American
Model:
FLEX SPRAY/UV OVEN

Specifications

Condition:
new
Year:
2016
Recnum:
FS-300001
Comments:
American made equipment at an affordable price!
Machtype:
STAIR TREAD FINISHING LINE
Condition info:
Brand New w/Warranty
Current status:
Brand New
Elect./voltage:
220 V, 60 Cy, 3 Ph.
Appr. repl. cost:
115000

Description

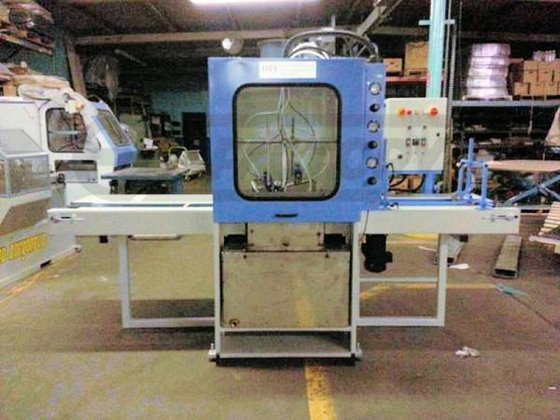

STAIR TREAD UV Finishing Line with Compact Design includes: DPI UV Flex Spray Mini, DPI Denibber, and DPI 3-Lamp UV Oven. __ Pos. #1 - Flex Spray Mini: Single Station Spray Machine, 12" width cap. x 3-1/8" max. part thickness and 39-1/4" min. part length. __ Standard specifications: (4) Sets of gun mounts made from stainless steel rods and HDPE mounting knuckles, (4) stainless steel C.A. TECHNOLOGIES "100" standard UV automatic spray guns with (1) DYISHENG diaphragm fluid pump. __ Complete with: Stainless steel coated recovery cabinet with spigot for recycling back into sprayer, front access door with large viewing window & gas shock support arms; 1.5 HP motor with 11.8" dia. exhaust fan rated at 2,350 CFM; washable filters configured to return over-spray into recovery pan. __ Feeding: Variable speed belt conveyor from 65 - 325 FPM, 1.5 HP feed motor; working height 35-3/8". __ Pos. #2. - DPI "DN4-1404" Denibbing Sander for Stair Treads: Sanding machine comes with (4) sanding heads - (2) 14" overhead and (2) 4" on one side; each sanding unit has variable speed, top sanding units are adjustable up/down, in/out and tilt. __ Sander is designed for use with loose sandpaper dinger style brushes with Tampico backing or impregnated wire brushes. __ Conveyance is by raised surface slider belt and rubber coated rollers; conveyance modified to handle overhang of stair tread so workpiece rides level. __ Holddowns and guides on the sides help keep the workpiece in place; Dust Collection hoods cover each unit. __ TECHICAL DATA. Length 109", width 55", height 55"; max. working thickness 3", max. working width 12".__ Dust suction hood dia. of 4", max. sanding brush dia. 10"; width of sanding brushes 14" top and 4" sides; brush spindle dia. 1". __ Feed Speed from 30 - 120 FPM, sanding motor power 1 HP, conveyor motor 1 HP; Voltage 220 V, 3-Phase, 14 Amps. __ Pos. #3 - UltraViolet Oven for Moulding, model "UV03-1212/300": The Oven cures the workpiece on all sides by first passing over a bottom mounted UV lamp then by (2) adjustable lamps that cure the sides and the top. __ Doors on the side of the Oven allow for easy access to lamps; doors are integrated into the emergency circuit to avoid exposure to UV rays. __ Interior of doors are covered with polished metal to reflect UV light back onto workpiece; sections of ven are double-walled to keep outside of oven cool to the touch. __ Adjustable ventilation fans bring in filtered air and exhaust hot air and ozone to help keep the lamps and curing cool. __ Entry & Exit are optically shielded to limit escape of UV light; Oven utilizes mercury lamps to cure clear and lightly colored UV coatings; transport is by a UV resistant Teflon coated mesh belt over a perforaterd slider bed. __ Top lamps are coupled, (1) power supply controls (2) lamps; conveyance modified to allow for overhang of stair tread so workpiece runs level. __ TECH DATA - 3 Lamp System: 300 Watts/In with variable power (125, 200, 300 WPI), 12" mercury lam
