1966 Chamfering machine BECKER RFA

1966 Chamfering machine BECKER RFA 14/9 in Willich, Germany

Location:
Willich, Germany
Manufacturer:
Becker
Model:
RFA 14/9

Specifications

Condition:
used
Year:
1966
Stock number:
1132-103160
State:
Used machine
Control:
konventionell
Quality:
Beidseitig Double
Division:
Metal Processing
More info:
On request
Quotation:
EX Works
Working area:
17,,,,,,,,,,,136 mm Ø
Delivery time:
immediately
Material length:
8500 mm
Country of origin:
Germany

Description

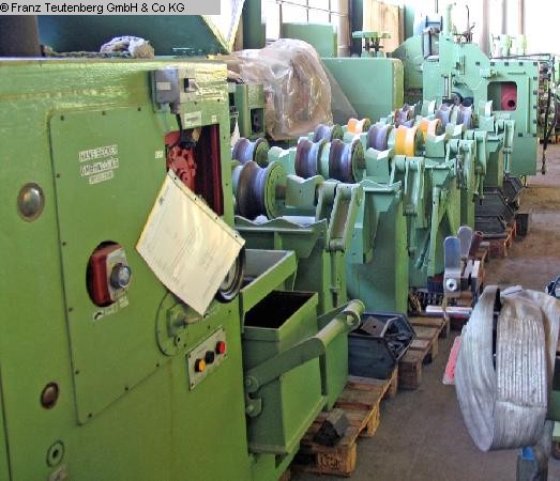

DOUBLE SIDED CHAMFERING MACHINE
Constr.: BECKER (today SMS)
Type: RFA 14/9
Year: 1966
Working range: tube Ø 17 - 136 mm
wall thickness 1 - 16 mm
With the relevant tools the line is suitable for chamfering of bars, or out -
and inside chamfering and planeing/facing of tubes.
Chamfering heads: infinitely variable, 190 - 1330 rpm, each chamfering head
7,5 kW
Average working speed: 80 m/min.
PIV gear box: inlet 1255 rpm - exit: 475 - 3325 rpm
Effective capacity: 330 pieces/hour
Tube length: approx. 8,50 m max.
Power supply: 380 V 50 cycles
The line consits of:
===============
- Material separation device
- 2 chamfering units
- 6 lift supports (construction: MANNESMANN) as transport unit between the
chamfering heads
- hydraulic station
- electrical cabinet
- various chamfering heads with tools.
Weight approx. 14 to.
