PALMS 142 + 695 in
Location:
Baileux, Belgium
Price:
No price
Manufacturer:
Palms
Model:
142 + 695

Specifications

Condition:
used
Year:
0
Age info:
New
Division:
Garden, Park & Forestry
Condition info:
New
Subcategory:
Forest
Subcategory 2:
Knuckleboom loaders

Description

Load capacity of 15 tons - Removing 4 wheels - 2 pistons for Dessel articulation - double petrel of section 2x250x150x8 - empty weight of the thigh 2700 kB - width 2360 mm - total length 7040 mm - load length 4950 mm - double Boogie axes with 500/55 R17 (16 PLY) or 550/45 22.5 "tires
Option hydraulic traction (550/45 22.5 "), power of 1.9 toners - speed of 2.7 km / h

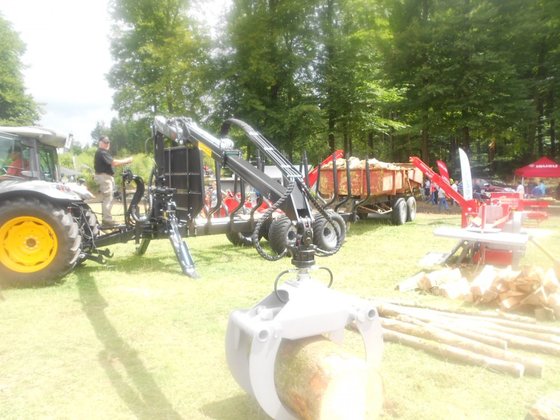

Crane PALMS 690
Distance Maxi from 7m00, Brut capacity 48 kn m.
Lifting capacity to 3 meters: 1190 kg
Lift capacity at 6.80 m: 550 kg
Rotation system in mono block with oil, with 4 pistons,; Rotational force of 14.5 kn M
Oil pressure needed 180 bar with 35/70 liter / Min
Feet type FLAP DOWN plated for best stability
Clip of 130 cm PRO
Articulation pistons mounted on rolling with grease nipples. Articulation mounted mounted on bonze.
Command electro hydraulic ON / OR
Parallelograms on the second arm, for loading precision, second arm mounted with hydraulic telescope
Crane can be delivered ok with mounting on 3 point, or OK and Kaar PALMS 11 D, 13 D, 15 D
2 Year Warranty
Okay, the other model
