2004 SCMI PRATIX 48 NST

2004 SCMI PRATIX 48 NST FLAT TABLE MACHINE (W/ATC/BORING) [FT-010403] in United States

Location:
United States
Manufacturer:
SCM
Model:
PRATIX 48 NST

Specifications

Condition:
used
Year:
2004
Recnum:
FT-010403
Comments:
Seller States, "well maintained SCMI "Pratix" CNC Machine!
Machtype:
FLAT TABLE MACHINE (W/ATC/BORING)
Condition info:
(6-8) Very good condition [6]
Current status:
Active
Elect./voltage:
400 V, 60 Cy, 3 Ph.
Appr. repl. cost:
129900

Description

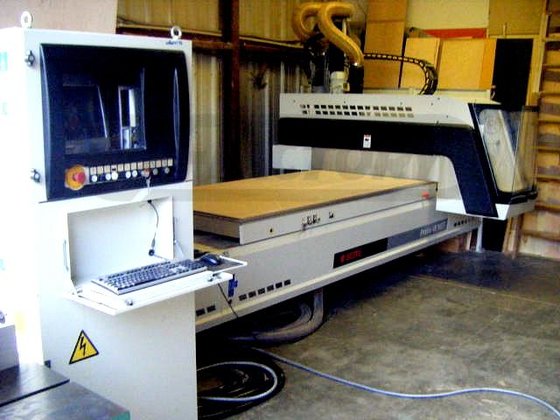

SCMI PRATIX 48 NST FLAT TABLE MACHINE (W/ATC/BORING):

-- Specifications:Single 4' x 8' stationary aluminum table, machined with a square grid pattern for fixturing parts.

-- Working field:"X" Axis is 106" (2,690 mm), "Y" axis 51" (1,295 mm), "Z" axis stroke is 13.3" (340 mm); max. material clearance is 4.9" (124 mm).

-- Positioning Speed:"X" & "Y" Axis is 246 FPM (75 MPM), "Z" axis is 98 FPM (30 MPM);.Closed loop AC Servo drive system driving precision ground ball screws; All axes ride on extra large precision profile linear guideways.

-- Work Table:Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested based machining"; pop-up pins on the table perimeter for part location.

-- Boring unit:3 HP (2.2 kW) - 4,000 RPM motor; (1) "F 12" boring unit with (12) independent vertical spindles, (7) spindles in "X" axis & (5) spindles in "Y" axis.(6) Horizontal spindles, (2+2) in "X" axis & (1+1) in "Y" axis; (1) 120 mm dia. saw blade in "X" axis.

-- Machining:(1) 10 HP (7.5 kW) "Power 2000" Electro spindle with HSK F63 tool adaptor; variable spindle speeds from 1,500 - 18,000 RPM.(1) 8-Position traveling ATC tool carousel.

-- Operator & Machine Control:PC Front End with SCM "XILOG Plus" + Windows "XP" operating system; 15" CRT color display; 40 GB hard drive, 128 MB RAM;Industrial keyboard & mouse; CD-ROM disk drive; all housed in air cooled cabinet.

-- Complete with:(1) 10 HP Capacity Vacuum Pump; safety enclosure around the spindle carriage, safety barriers.

-- Actual Model is SCMI PRATIX 48 NST.
