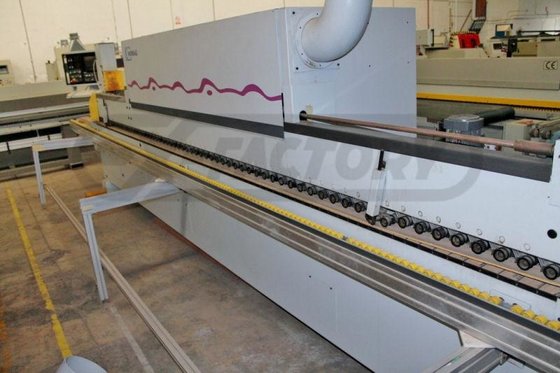

2002 HOMAG KL 75/A20 EDGEBANDER
Location:
United States
Price:
$31,410 USD
Manufacturer:
Homag
Model:
KL 75/A20

Specifications

Condition:
used
Year:
2002
Recnum:
EO-011982
Comments:
Well maintained, beautiful looking machine!
Machtype:
EDGEBANDER
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
380 V, 50 Cy, 3 Ph.
Appr. repl. cost:
130000

Description

0.4 - 20 mm Edge thickness cap., min. panel width 55 mm (2-1/4"), panel thickness 12 - 60 mm, min. edge length 10-1/4"; line control with "HOMATIC NC 21" controller features: Keypad & LCD display, stores working programs and controls functions of workstations, allows fault diagnostic and more.

-- Equipped with: Automatic coil feed magazine for coil material up to 3 mm thickness, strip feed magazine for up to 20 mm (3/4") solid wood banding; "QA 34" Quick Melt glue system w/pre-melt granular hopper and with roller applicator (reversible); pneumatic pressure roll section with (1) large dia. driven and (6) pneumatically controlled idle rollers.

-- Workstations: Double motor front & rear end trim (0.7 HP - 12,000 RPM ea.), pneumatic chamfer setting; top & bottom rough trims (2 HP - 12,000 RPM motor ea.); top & bottom bevel & fine trims (0.6 HP - 12,000 RPM motor ea.), tiltable 0° - 30°, pneumatic exclusion from operator panel; top & bottom bevel & fine trims (0.6 HP - 12,000 RPM motor ea.), tiltable 0° - 30°, pneumatic exclusion from operator panel.

-- "UF-11" Edge profile shaper unit, tilts either at 0° or 90° w/pneumatic jump control (4.15 HP - 9,000 RPM motor), reverse switch for rotation (all trim station motors are 200 Cy HF and equipped w/electronic brakes).

-- "KS-10" Oscillating flat edge belt sanding unit (2.5 HP motor), 4.7" x 82" abrasive belt, w/air blast belt cleaner.

-- Motorized top pressure beam with powered V-belt holddown, 80 mm wide Heavy Duty feed chain w/rubber pads, automatic chain track lubrication system, and 4 HP feed drive for variable feed speed of 23 - 98 FPM.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
