2010 DEIMCO 36" WIDE SPRAYER,

2010 DEIMCO 36" WIDE SPRAYER, OVEN SYSTEM SPRAY FINISHING LINE COMPLEATE/ COMPLEAT WITH SPRA [FS-010530] in United States

Location:
United States
Price:
$95,000 USD
Manufacturer:
DEIMCO
Model:
36" WIDE SPRAYER, OVEN SYSTEM

Specifications

Condition:
used
Year:
2010
Recnum:
FS-010530
Comments:
DEIMCO is American made equipment at an affordable price!
Machtype:
SPRAY FINISHING LINE COMPLEATE/ COMPLEAT WITH SPRA
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
320500

Description

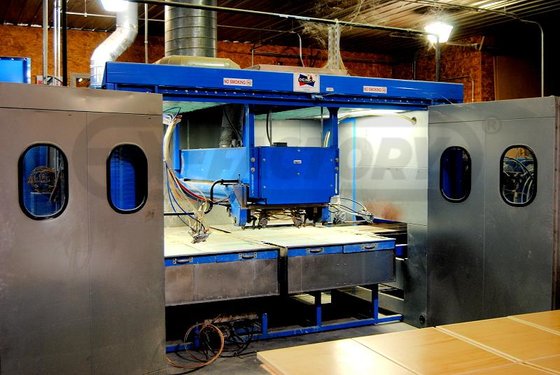

DEIMCO "Full Feature" FINISHING LINE - All in One COMPACT FOOT PRINT - Flatline w/electric reciprocator.

-- SYSTEM OPTIONS: (1) DVIP-48" Heavy Duty Electric Reciprocator - DEIMCO horizontal mount DVEL-48" (4') stroke electric reciprocator - Finger tip speed control with speed of 0 - 300 FPM - Cross-arm with (6) Gun mounts - Automatic Start/Stop - Gun Bar Angling.

-- UL Labeled Main Electrical Enclosure & UC-1000 Upline Gun Control:

-- (6) control outputs

-- UCS-1000 16-gun control system with Allen Bradley "Panel View 550 HMI".

-- Light curtain part detection system

-- Air Control Enclosure Including: (6) Man/Off/Auto, (6) Atomizing air regulators, (6) Fan air regulators, (6) Fluid regulators.

-- (1) Filament Conveyor - Overall cube dimensions [3' wide x 29 'long] - 1/2 HP drive motor - Inverter speed control w/digital speed display in HMI - (27) individual filaments on 1" centers (26" filament width - wider parts overhang conveyor), 1 - 10 FPM operating speed range.

-- (1) Urethane Elastomer Oven Conveyor: 36" Overall width x 29' overall length - Urethane Elastomer belts on 3" centers - 1/2 HP AC motor, gear reducer - Variable speed 0 - 15 FPM, design speed 4 - 5 FPM.

-- (1) Fluid Delivery System; (3) Fluid delivery circuits:

-- (3) GRACO "SS Triton" wall pump with 100-mesh SS filter.

-- (6) BINKS "Mag HVLP" Automatic guns with mount, manifolds, needles, and nozzles.

-- (6) Individual fluid pressure, fan air, and atomizing air regulators (in DEIMCO air control enclosure);

-- (3) Back ressure regulator

-- (2) 5-gallon pail cover, agitator, and siphon pick-up tube.

-- (1) Lot low pressure hoses, gauges, fluid fittings and ball valves.

-- (1) Manual Infeed Load and Outfeed Unload Tables: Powder coated strructural steel frame with polypropylene wearliner

-- (2) 180° Belt Conveyors - Variable Speed 1 - 10 FPM - 1/2 HP Drive Motor - 30"W x 42"L Maximum part capability - 6" Side Guards - 2-Ply Black PVC Belt.

-- Steel doctoring blade/guide combo - 0.079 smooth filament - 8" diameter take-up and tail pulleys - 24" diameter drive pulley - 2" dia. support rolls on 48" centers;

-- Filaments reclaim pre-cleaner and Filament solution cleaner.

-- (1) Stainless Steel Down Draft Spray Booth Enclosure: Total enclosed spray booth 8' hight x 10' wide x 9' deep - Filtered roof panels for air intake - Down draft air movement for overspray containment - 24" heavy duty exhaust fan with 1-1/2 HP motor producing 7,200-CFM.

-- 18-Gauge stainless steel construction - Visible draft windows on both sides of booth - Walk-in service door.

-- (1) Solvent Fated Combination Cure Oven: 15'L x 3'W working depth

-- (10) 4.5 kW electric IR/convection

-- (5) SCR controlled zones controlled through Allen Bradley "HMI".

-- Adjustable burner height; 1,500 CFM - 3/4 HP Exhaust fan - 3.000 CFM - 7.5 HP recirculation fan - Variable speed recirculation fan.

-- Explosion relief panels - Thermocouple over temperature interlock,
