Optimum Optimum Cirkelzaagmachine CS 315
Location:
Tiel, Netherlands
Price:
$2,273 (USD)
Manufacturer:
Optimum
Model:
Optimum Cirkelzaagmachine CS 315
Weight:
235 Kg

Specifications

Condition:
used
Year:
0
Weight:
235 Kg
Age info:
New
Price info:
Excl. VAT
Condition info:
New
Subcategory:
Metalworking

Description

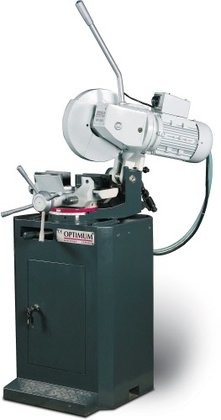

CS 315. Manual short cutter for metal, round or square, both hollow and full. Sluggish type with cooling. 400V engine with 2 speeds. Saw head 45 ° left and 45 ° right turnable. Gear gear in oil bath. Centrally exciting and double clamping clamp with quick-release device. With 4-conductors and 4 individually adjustable tanks. Sawing always occurs in an optimal work position. Anti-braam holder. Long handle for easy operation without heavy effort. Standard with solid shelf. Cooling pump has been integrated into the plinth. The coolant bin is removable for easy cleaning. The shelf offers the possibility of construction with the optional MSR 4 feed roller system on both sides of the shelf. Latch 45 ° left and 45 ° right pivotable. Fixed and mobile shield over the saw blade.
Standard supplied with: pedestal, electric 24V low voltage actuator with emergency stop, main switch, speed selector switch and overload thermostat. Without saw blade. See accessories sawmills.
Original. No.
3302300
Fashion model
CS315
Voltage
V
3x400
Diameter saw blade
Mm
315
Power engine
KW
1.5-0.75
Saw speed
M / min
19-38
Opening clamp
Mm
135
Dimensions (l x b x h)
Mm
910x546x1759
Weight
Kg
235
