2002 Butt welding machine STRECKER
Location:
Willich, Germany
Manufacturer:
STRECKER
Model:
SS 40 NV PYR
Capacity:
40 kVA

Specifications

Condition:
used
Year:
2002
Stock number:
1132-103287
State:
Used machine
Control:
konventionell
Division:
Metal Processing
More info:
On request
Quotation:
0
Working area:
18 -180mm²
Delivery time:
immediately
Rated capacity:
40 kVA
Country of origin:
Germany

Description

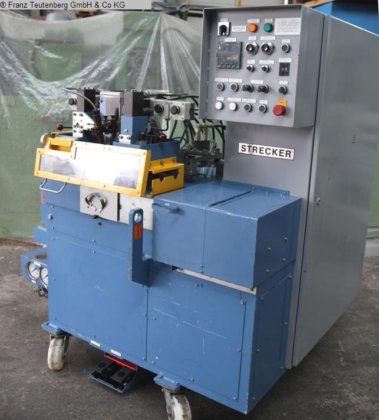

DOUBLE UPSET BUTT WELDING MACHINE
with AUTOMATIC FLASH REMOVAL for STEELWIRE and
reannealing device with temperature control via infrared pyrometer
constr.: STRECKER
type: SS 40 NV PYR
year: 2002
condition: very good
working range: steel wire profiles: 18 - 180 mm²
material: steel
rated power: 40 kVA
primary voltage: 400 V
frequency: 50 Hz
working current: 13,2 kA at 15% ED
secondary short-circuit current: 16,5 kA
secondary voltage: up to 5 V
control voltage : 24 V
connect load: 40 kVA
Scope of delivery:
===========
Main machine body (mobile, on rollers moveable) with mounted:
- electrical cabinet
- command desk
- reannealing device
dimensions: approx. 1500 x 1300 x 1600 mm
weight: approx. 1.500 kg
