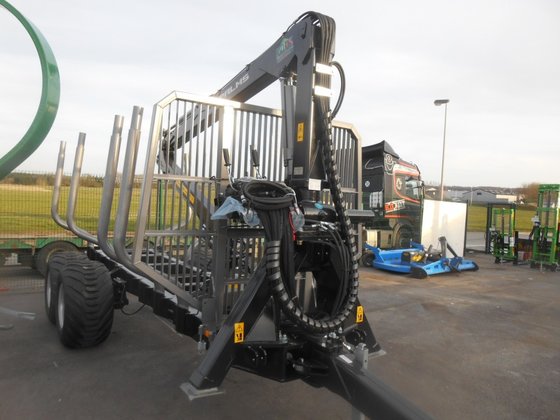

PALMS 13 D + 670
Location:
Baileux, Belgium
Manufacturer:
Palms
Model:
13 D + 670

Specifications

Condition:
used
Weight:
3.150 Kg
Division:
Garden, Park & Forestry
Subcategory:
Forest
Subcategory 2:
Knuckleboom loaders

Description

load capacity of 13 tons - Remen ON 4 WHEELS - two pistons for the articulation of the Dessel - double pouttrel Section 2x200x100x8 - empty WEIGHT of the card in 2150 KG
0 KG - width 2360 mm - total lengte6650 mm - loading length 4500 mm - double bogie axle with tires 500/50 R17
Optional hydraulic traction (500/55 R 17), strength of 1.9 ton vessels - speed of 2.7 km / h, lights, hydraulic central ...
Crane PALMS 670
Maxi of 6m70, Brut Heef capacity 42 kn m.
Heef capacity to 3m: 1040 kg
Heef capacity to 6.70 m: 460kg
Rotation system in monoblock with oil, with 4 pistons; rotational force of 11 kn M
Oil required pressure of 180 bar with 35/70 liters / Min
Feet type telescope
Clamp 120 cm
Articulation pistons mounted on role elements with grease nipples. Cheered articulation mounted on bronze.
Command electro hydraulic ON / OFF
parallelograms on the second arm, for the loading precision, second arm mounted with hydraulic telescope
Delivered to mount on 3-point, or ok and Card PALMS 81,101,122,142
2 Year Warranty
ACTION IN STOCK
