2000 I M A BIMA
Location:
Europe
Manufacturer:
I M A
Model:
BIMA 410 V

Specifications

Condition:
used
Year:
2000
Recnum:
BP-012081
Machtype:
CNC MACHINING CENTER (W/EDGEBANDING)
Condition info:
(5-7) Cleaned and checked [7]
Current status:
Active
Elect./voltage:
400 V, 50 Hz, 3 Ph.
Appr. repl. cost:
361200

Description

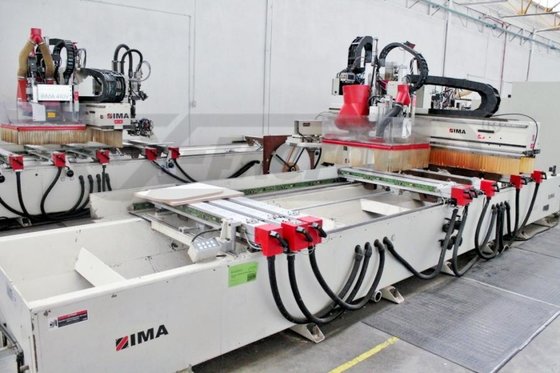

IMA BIMA 410 V CNC MACHINING CENTER (W/EDGEBANDING):

-- Specifications:Working field "X" Axis is 5,000 mm (196.8"), "Y" axis is 1,250 mm (49.2"), "Z" axis stroke is 440 mm (17.32"), "Z" axis working cap. 3.9" (100 mm); minimum internal radius 30 mm.

-- Positioning:AC Brushless Servo motors with digital drive & linear guides ensure high speeds with a smooth acceleration-and-deceleration

-- Work Table:(8) Adjustable rails supports; (3) adjustable vacuum pods per rail, (8) pop-up back stops, (2) pop-up side stops, (2) pop-up central stops;LED assistance for manual pod & rail set-up accoriding to the program.

-- Boring Unit:(1) 4 HP (3 kW) motor - 4,000 RPM; (21) individual vertical spindles, (11) in "X" axis & (10) in "Y" axis;(4) horizontal drilling heads with (1 + 1) spindles in "X" axis & (1 + 1) spindles in "Y" axis; (1) NC controlled 0° - 90° "X/Y" grooving saw.

-- Machining:(1) 16 HP (12 kW) electro-spindle router equipped with "HSK F63" adaptor, variable speed from 1,000 - 24,000 RPM;(1) NC controlled "C" axis for 360° horizontal processing; (1) 18-position plate-type tool changer.

-- Edgebanding unit Precisely applies ABS & PVC with 40 mm max. edge thickness (60 mm without edging); the edgebanding is automatically applied to square or irregularly shaped parts as the CNC manufacturing head rotates along the "X", "Y" & "Z" axes, and simultaneously rotates the tooling on a high precision "C" axis.Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; 2-coil magazine that is numerically controlled with encoder that measures strip feeding process, magazine is preheated, warning sensor when the end of the spool is near.Pneumatically activated saw blade performs the end trimming at a 35° angle for precise fitting of overlapping joints on adjoining edges.Top & Bottom profile scraping & flat scraping with thickness control.

-- Operator & Machine Control:"IMATRONIC NT 231" + IMAWOP + WINDOWS operating system; icon driven with graphical interface to allow the operator to quickly & efficiently create programs;1.44 MB Disk drive, 14" color LCD monitor; features RS-422 serial connection to PC (up to 300 meters); (2) line adaptors, RS-232 & 485.2 with 9-25 pin & card for RS-232 line (cable not included).IMAWOP Multitask operating system with input/output modules, axes override, 4-axis interpolation, diagnostic graphics aid for programming, machine data & tool management.

-- Complete with:Scrap belt conveyor; (2) 100 cbm/hr Vacuum Pumps; voltage stabilizer; perimeter protection fence; user & maintance manuals, wiring diagrams.

-- Actual model is IMA BIMA 410V 120/600.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
