2006 GIARDINA COMPLETE LINE FLAT

2006 GIARDINA COMPLETE LINE FLAT PANEL FINISHING LINE [FS-010532] in Spain

Location:
Spain
Price:
$209,563 USD
Manufacturer:
GIARDINA
Model:
COMPLETE LINE

Specifications

Condition:
used
Year:
2006
Recnum:
FS-010532
Comments:
Why buy a new when a GIARDINA Line "like this" is available immediately!
Machtype:
FLAT PANEL FINISHING LINE
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
400 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
525000

Description

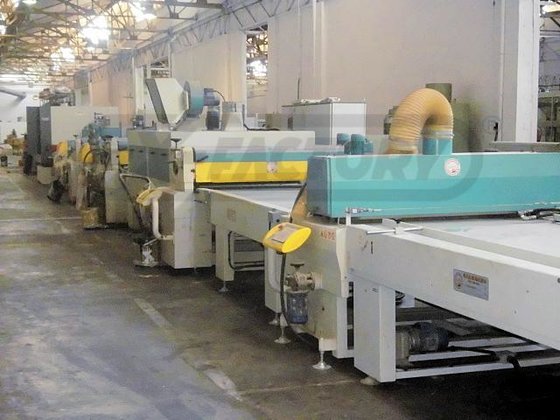

14-Component Line - GIARDINA UV Roll Coat Finishing Line, 1,400 mm (55") wide Flat Panel Finishing including:

-- Loading Belt Conveyor model "BT 300".

-- Panel Cleaner "G95-20" with (1) brush and air blowing nozzels to clean the panels surface.

-- Roller Conveyor "BR 3000 RU".

-- Stain Precision roller coating "G02-01".

-- Drying tunnel with IR lamps, "IRMD 6-4-3".

-- Reverse Fill Precision roller coater "G95-09", with smoothing steel roller.

-- 1-Lamp UV Curing Oven "GST 1400/1", power of 120 Watts/cm. The tunnel is suitable for the curing of any UV lacquering product.

-- Precision Roll Coater "G95-05" with TELEMECANIQUE PLC Controls, used for 1st Seal Coat; Conveying System is solvent resistant, anti-static PVC belt.

-- 2-Lamp UV Curing Oven "GST 1400/2", power of 120 Watts/cm. The tunnel is suitable for the curing of any UV lacquering product.

-- Roller conveyor "BR 3000".

-- Panel cleaner "G95-20" with one brush and air blowing nozzels to clean the panels surface.

-- Roller conveyor "BR 3000 RU".

-- Precision Roll Coater "G95/05", with TELEMECANIQUE PLC Controls; Conveying System is solvent resistant, anti-static PVC belt; being used for top Coat

-- 2-Lamp UV Curing Oven "GST 1400/2", power of 120 Watts/cm. The tunnel is suitable for the curing of any UV lacquering product.General description & Operation:

-- Application unit has chromed steel dosing roller with high ground thickness; rubber application roller (EPDM based) with high chemical resistance.

-- The Dosing roller, application roller & belt conveyor speeds are controlled and independently adjusted by means of inverter, with digital visualization on the control panel.

-- Quantity of applied product acting is being adjusted from the dosing roller reversal rotation speed, keeping the running and the rubber application speed constant.

-- The lifting & lowering of the application head, according to the panel thickness; achieved through a hand wheel and decimal gauge indicator.

-- L.P.C. (Lamp Power Control) for the continuous adjustment of UV lamp power; power adjustment is obtained through a pilot potentiometer activated by the operator or by general control keyboard. UV sensor for the monitoring of the UV lamp efficiency.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
