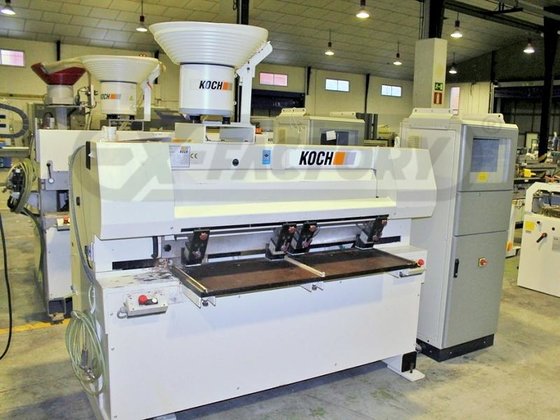

1999 KOCH SPRINT-PTP CNC BORE,

1999 KOCH SPRINT-PTP CNC BORE, GLUE & DOWEL INSERTER [GD-010639] in Europe

Location:
Europe
Price:
$16,829 USD
Manufacturer:
Koch

Specifications

Condition:
used
Year:
1999
Recnum:
GD-010639
Comments:
Offered cleanded and checked by our partner dealer in Spain!
Machtype:
CNC BORE, GLUE & DOWEL INSERTER
Condition info:
(6-8) Very good condition [7]
Current status:
Active
Elect./voltage:
400 V, 50 Cy, 3 Ph.
Appr. repl. cost:
60000

Description

Automatic step-by-step, Boring, Glue Injection & Dowel Insertion into panel components, drawer parts, chair pieces, etc., at random spacing.

-- Work Capacity: 20 mm - 1,200 mm (3/4" - 47") panel length, 100 - 1,200 mm (4" - 47.2") panel width, 12 mm - 40 mm (0.47 - 1.6") max. material thickness, max. boring depth 50 mm (1.96"), standard for 8 mm dia. and 30 mm long dowels.

-- Positioning speed of all working units at 160 MPM (525 FPM), boring & insertion capacity up to (60) dowels/Min.

-- (2) Independent work zones; (1) side can be processing while the other is being unloaded & loaded.

-- (1) Independent Horizontal boring spindles.

-- (8) Adjustable stock clamping cylinders (four clamps in each zone).

-- (1) High pressure patended "KOCH ELC" glue injection unit & dowel inserter head.

-- Complete with: Overhead vibrating hopper for dowel feeding, "air tight" pressurized 1:1 glue tank & "ELC" Electronic Glue Detection System (special patended "KOCH design" precision dosing valve w/digital adjustment).

-- (2) Fixed fences (RH & LH side) w/attached sensors and double-sided center fence with (2) sensors.

-- CNC Control Windows 98 w/monitor built into free-standing operator control cabinet, menu driven screen for function control & graphic illustration of machine functions.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
